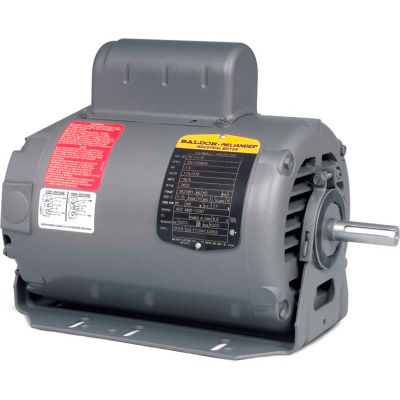

Baldor-Reliance Single Phase HVAC Motor
This OPEN enclosure, 0.5HP, 1725RPM, 115/230V unit has heavy guage steel base, ball bearings and dynamically balanced rotors for reduced vibration and quiet operation. Suitable for mounting in any position.
This OPEN enclosure, 0.5HP, 1725RPM, 115/230V unit has heavy guage steel base, ball bearings and dynamically balanced rotors for reduced vibration and quiet operation. Suitable for mounting in any position.
Weights & Dimensions
- Width 11.125 in
- Length 10.97 in
- Height 10 in
- Shaft Diameter 0.625 in
- Frame Size 56H
- Opposite End Bearing Size 6203
- Length Less Shaft 14 in
- Weight 34 lbs
Product Details
- Enclosure Type Open/Drip Proof
- Horsepower 1/2 HP
- Is_Motor Yes
- Duty CONT
- Phase 1
- Enclosure OPEN
- Full Load Efficiency 62
- Brand Baldor-Reliance
- Bearing Type Ball
- Full Load Amps 8/4 FLA
- Design Code N
- Motor RPM 60 Hertz 1725 rpm
- Thermal Protection Automatic
- Hertz 60 Hz
- Manufacturers Part Number RL1323A
- Mounting Location Resilient
- Number of Speeds 1
- Rotation CCW/CW °
- Poles 4
- Ambient Temperature 40 °C
- Drive End Flange Standard
- Insulation Class F
- RPM Range 1701-1800 rpm
- Voltage 115/230 V
- Rated RPM 1725
- Frame 56
- Service Factor 1
Compliance & Certifications
- Certifications CSA; UR
Customer Review
Product Q & A
There are no questions for this product.

Baldor-Reliance Motor RL1323A, .5HP, 1725RPM, 1PH, 60HZ, 56, 3416L, OPEN, F1, N
$404.95
