Baldor-Reliance Motor VEBM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

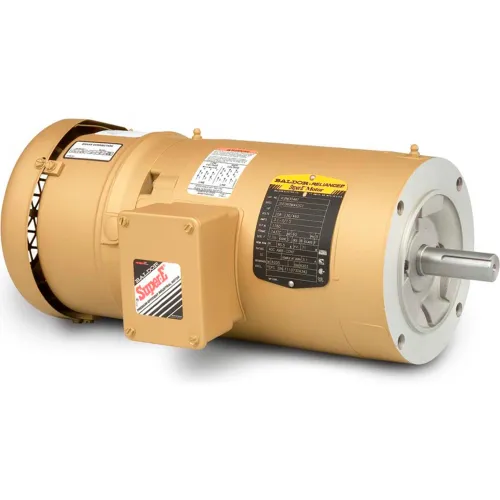

Actual product may differ from image shown

Baldor-Reliance Motor VEBM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Item #: WBB391110

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,865.00 up to 38% OFF

Price: $1,782.00

$297.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VEBM3546, 1HP, 1765RPM, 3PH, 60HZ, 56C, 3524M, TEFC, F1, B

Baldor-Reliance Motor VEBM3546, 1HP, 1765RPM, 3PH, 60HZ, 56C, 3524M, TEFC, F1, B

Baldor-Reliance Motor KBL3406, .33HP, 1725RPM, 1PH, 60HZ, 56C, 3414L, TEFC, F1

Baldor-Reliance Motor KBL3406, .33HP, 1725RPM, 1PH, 60HZ, 56C, 3414L, TEFC, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 2HP,1725RPM,3PH,60HZ,145TC,3532M,TEFC,F1

Features:
  • Standard NEMA BA dimension
  • Spring set brake
  • Power off operation manual release
  • NEMA Premium® Efficiency and inverter-ready
  • 230/460V brakes are connected in conduit box
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Weights & Dimensions

  • Dimension C 18.74 in
  • Opposite End Bearing Size 6203
  • Weight 57 lbs

Product Details

  • Power Factor 73
  • Mounting Location C-Face Footless
  • Bearing Drive End 6205
  • Brake Rating 10
  • RPM 1755 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 208-230/460 V
  • Frame 145TC
  • Service Factor 1.15
  • Horsepower 2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEFC
  • Phase 3
  • Full Load Efficiency 86.5
  • Brand Baldor-Reliance
  • Full Load Amps 6-5.8/2.9 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1755 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number VEBM3558T
