Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

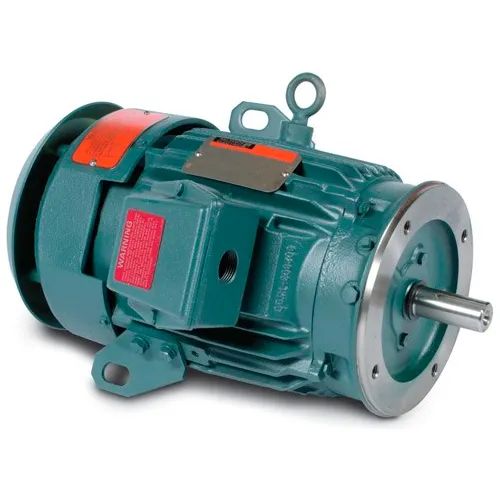

Actual product may differ from image shown

Baldor-Reliance Motor VECP3584T-4, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 0530M, TEFC

Item #: WBB391241

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,748.00 up to 36% OFF

Price: $1,117.00

$186.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, CECP3581T, 3 PH, 1 HP, 208-230/460 V, 1765 RPM, TEFC, 143TC Frame

Baldor-Reliance Severe Duty Motor, CECP3581T, 3 PH, 1 HP, 208-230/460 V, 1765 RPM, TEFC, 143TC Frame

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Motor ECP4308T-4, 40HP, 1190RPM, 3PH, 60HZ, 364T, TEFC, FOOT

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Motor ECP3663T-4, 5HP, 3505RPM, 3PH, 60HZ, 184T, TEFC, FOOT

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Baldor-Reliance Severe Duty Motor, ECP84111T-4, 3 PH, 25 HP, 460 V, 1180 RPM, TEFC, 324T Frame

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 1.5HP,1760RPM,3PH,60HZ,145TC,0530M,TEFC

Features:
  • Super-E premium efficient motor
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
Typical Applications:
Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.

Weights & Dimensions

  • Dimension C 13.38 in
  • Opposite End Bearing Size 6205
  • Weight 68 lbs

Product Details

  • Power Factor 76
  • Mounting Location No Mounting
  • Bearing Drive End 6205
  • RPM 1760 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 460 V
  • Frame 145TC
  • Service Factor 1.15
  • Horsepower 1-1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEFC
  • Phase 3
  • Full Load Efficiency 88.5
  • Brand Baldor-Reliance
  • Full Load Amps 2.1 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1760 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number VECP3584T-4
