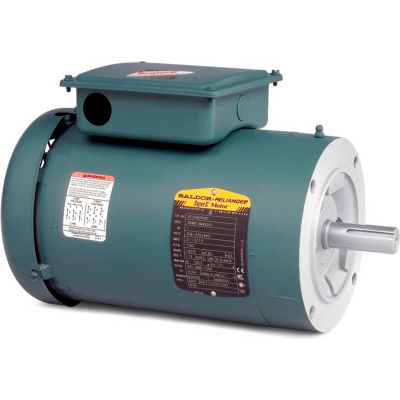

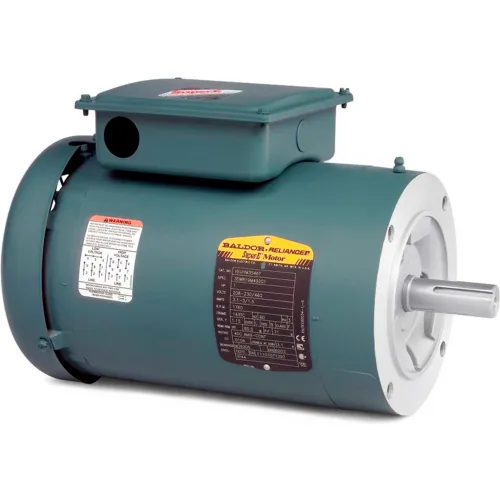

Baldor-Reliance Motor, 2HP,1725RPM,3PH,60HZ,145TC,3532M,TEFC,F3
Features:
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
Features:
- UL/CSA recognized and CE certified
- CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
- CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
- 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
- 56-140 frames have low profile F3 top-mounted conduit box
- 3 year warranty on Super-E® motors
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
Weights & Dimensions
- Dimension C 14.17 in
- Opposite End Bearing Size 6203
- Weight 51
Product Details
- Power Factor 73
- Mounting Location No Mounting
- Bearing Drive End 6205
- RPM 1755 rpm
- Poles 4
- Drive End Flange C-Face
- Ambient Temperature 40 °C
- KVA Code L
- Insulation Class F
- RPM Range 1701-1800 rpm
- Voltage 208-230/460 V
- Frame 145TC
- Service Factor 1.15
- Horsepower 2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Enclosure TEFC
- Phase 3
- Full Load Efficiency 86.5
- Brand Baldor-Reliance
- Full Load Amps 6-5.8/2.9 FLA
- Design Code B
- Motor RPM 60 Hertz 1755 rpm
- Hertz 60 Hz
Compliance & Certifications
- Specification Number 35W819M494G1
- DOE Code 010A
