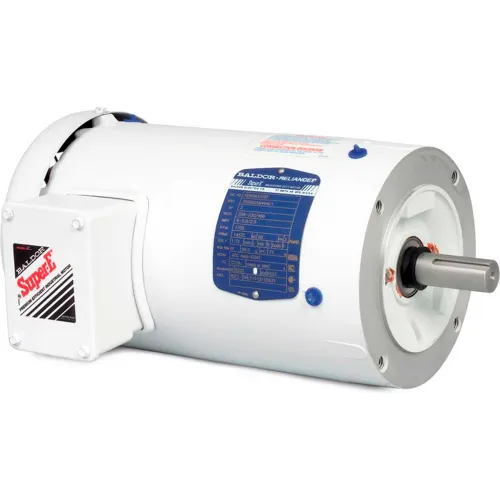

Actual product may differ from image shown
$1,983.00 up to 38% OFF
Price: $1,234.00
$205.67/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Baldor-Reliance Motor, 2HP,1725RPM,3PH,60HZ,145TC,3532M,TEFC,F1
Features:
Food processing and other applications where motor is regularly exposed to high pressure wash down.
Features:
- Moisture sealant on bolt heads, between frame and endplates
- Neoprene gaskets
- Double sealed bearings
- Forsheda® running contact v-ring slinger
- Stainless steel shaft
- Electrostatically applied epoxy finish
- Class F insulation
- Tropicalized
Food processing and other applications where motor is regularly exposed to high pressure wash down.
Weights & Dimensions
- Dimension C 14.18 in
- Weight 48 lbs
Product Details
- RPM Range 1701-1800 rpm
- Mounting Location C-Face Footless
- Voltage 208-230/460 V
- Bearing Opp Drive End 6203
- Frame 145TC
- Service Factor 1.15
- Horsepower 2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- RPM 1755 rpm
- Enclosure TEFC
- Phase 3
- Brand Baldor-Reliance
- Full Load Amps 6-5.8/2.9 FLA
- Motor RPM 60 Hertz 1755 rpm
- Poles 4
- Hertz 60 Hz
- Manufacturers Part Number VEWDM3558T
- Drive End Flange C-Face
- Ambient Temperature 40 °C
