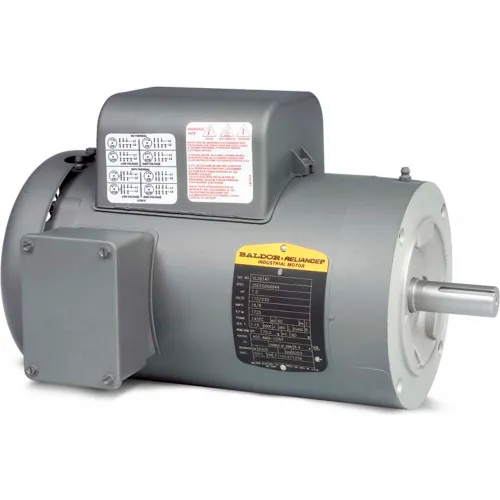

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Actual product may differ from image shown

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Item #: WBB391257

Not Yet Rated

Ships same day.

Enter zip code for delivery date estimate

Shipping to 10465 change

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1725RPM,1PH,60HZ,56C,3428LC,TEFC,F

Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Typical Applications:
Pumps, fans, conveyors, machine tools, gear reducers.

  • HORSEPOWER 3/4
  • ENCLOSURE TEFC
  • FRAME 56C
  • MOUNTING C-Face Footless
  • NAMEPLATE RPM 1725
  • PHASE 1
  • MOTOR RPM 60Hz 1725
  • VOLTAGE 115/230
  • HERTZ 60
  • SERVICE FACTOR 1.25
  • AMBIENT TEMP C 40
  • WEIGHT 34
  • RPM RANGE 1701-1800
  • SPEC. NUMBER 34G452Y094
  • POLES 4
  • C-DIMENSION INCHES 12.47
  • SERIAL-NUMBER --
  • DRIVE END FLANGE C-Face
  • POWER-FACTOR 78
  • ENCLOSURE TYPE Totally Enclosed
  • is_motor Yes
  • MANUFACTURER PART # VL3507
  • DOE-CODE --
  • BRAND Baldor-Reliance
  • 208V AMPS 5.4
  • KVA-CODE J
  • FL AMPS 8.4/4.2
  • INSULATION CLASS B
  • FL EFFICIENCY 72
  • BEARING-OPP-DRIVE-END 6203
  • BEARING-DRIVE-END 6203
  • DESIGN CODE N
