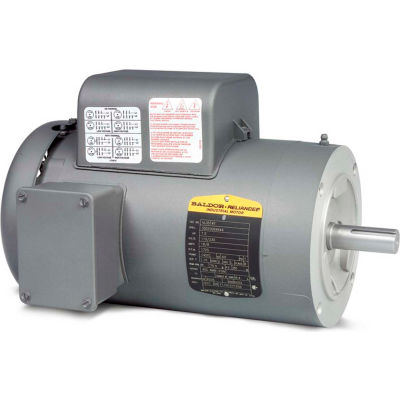

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Actual product may differ from image shown

Baldor-Reliance Motor VL3507, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3428LC, TEFC, F

Item #: WBB391257

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$883.00 up to 38% OFF

Price: $550.00

$91.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

4" Dia. Type A Aluminum Spec Cam and Groove Adapter x Female NPT

4" Dia. Type A Aluminum Spec Cam and Groove Adapter x Female NPT

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Baldor-Reliance Motor CL3503, .5HP, 3450RPM, 1PH, 60HZ, 56C, 3413L, TEFC, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Justrite Flammable 4 Gallon Liquid Cabinet Manual Single Door Vertical Storage

Justrite Flammable 4 Gallon Liquid Cabinet Manual Single Door Vertical Storage

Baldor-Reliance Motor, .75HP,1725RPM,1PH,60HZ,56C,3428LC,TEFC,F

Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Typical Applications:
Pumps, fans, conveyors, machine tools, gear reducers.

Weights & Dimensions

  • Dimension C 12.47 in
  • Weight 34

Product Details

  • Power Factor 78
  • Mounting Location C-Face Footless
  • Bearing Drive End 6203
  • Poles 4
  • Drive End Flange C-Face
  • Nameplate RPM 1725 rpm
  • Ambient Temperature 40 °C
  • KVA Code J
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Bearing Opp Drive End 6203
  • Voltage 115/230 V
  • Frame 56C
  • Service Factor 1.25
  • Horsepower 3/4 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 1
  • Enclosure TEFC
  • Amps @ 208V 5.4 A
  • Full Load Efficiency 72
  • Brand Baldor-Reliance
  • Full Load Amps 8.4/4.2 FLA
  • Design Code N
  • Motor RPM 60 Hertz 1725 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number VL3507
