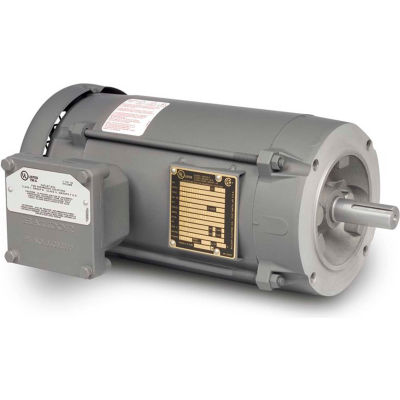

Baldor-Reliance Motor VL5007A, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3524L, XPFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor VL5007A, .75HP, 1725RPM, 1PH, 60HZ, 56C, 3524L, XPFC, F1

Item #: WBB391189

Not Yet Rated

Ships in One Business Day ? Items ship from warehouse within one business day (Mon. - Fri. excluding holidays). Transit times are determined by shipping method and destination.

Enter zip code for delivery date estimate

Shipping to 10465 change

Quantity

Customers Also Viewed

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, .75HP,1725RPM,1PH,60HZ,56C,3524L,XPFC,F1

Features:
  • Corrosion resistant epoxy finish
  • Positively locked drive end bearing
  • U.L. approved cast conduit box-standard
  • 1.00 Service Factor
  • Class I, Group D, Class II, Group F & G, T4
Typical Applications:
Pumps, blowers, valves, etc.

Weights & Dimensions

  • Dimension C 15.17 in
  • Weight 47 lbs

Product Details

  • Power Factor 68
  • Mounting Location C-Face Footless
  • Temp Code T4
  • RPM 1725 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 115/230 V
  • Frame 56C
  • Service Factor 1
  • Horsepower 3/4 HP
  • Enclosure Type Explosion Proof
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure XPFC
  • Phase 1
  • Full Load Efficiency 66
  • Brand Baldor-Reliance
  • Full Load Amps 10.6/5.3 FLA
  • Design Code N
  • Motor RPM 60 Hertz 1725 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number VL5007A
