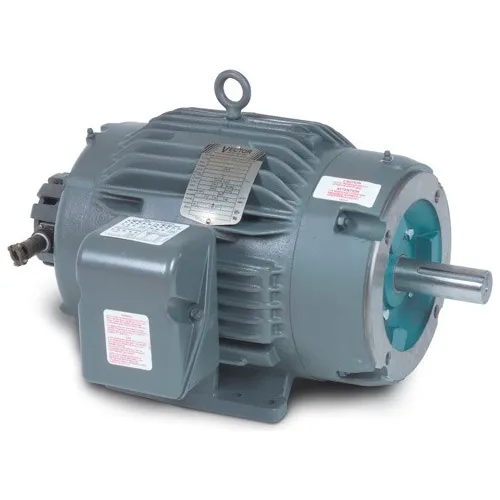

Baldor-Reliance Motor ZDM2334T-5, 20HP, 1765RPM, 3PH, 60HZ, 256TC, 0948M, TEBC, F

Baldor-Reliance Motor ZDM2334T-5, 20HP, 1765RPM, 3PH, 60HZ, 256TC, 0948M, TEBC, F

Item #: WBB392013

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$8,482.00 up to 32% OFF

Price: $5,780.00

$963.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Baldor-Reliance Motor, 20HP,1765RPM,3PH,60HZ,256TC,0948M,TEBC,F

Features:
  • Full torque at zero speed
  • 1000:1 constant torque range
  • Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC)
  • 1/3 thru 500 horsepower
  • Cast Iron construction
  • C-Face with base 143TC thru 449TC
  • Base mount only in frames 5007L-5009L
  • Class H Insulated
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
Typical Applications:
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.

Weights & Dimensions

  • Dimension C 34.15 in
  • Opposite End Bearing Size 6208
  • Weight 286 lbs

Product Details

  • Mounting Location Rigid
  • Bearing Drive End 6309
  • RPM 1765 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • Insulation Class H
  • RPM Range 1701-1800 rpm
  • Voltage 575 V
  • Frame 256TC
  • Service Factor 1
  • Horsepower 20 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEBC
  • Phase 3
  • Slip Hertz 1.12 Hz
  • Magnetizing Current 19 A
  • Full Load Efficiency 93
  • Brand Baldor-Reliance
  • Full Load Amps 19 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1765 rpm
  • Hertz 60 Hz
  • Max RPM 5000 rpm
  • Rotor-Inertia 2.1
