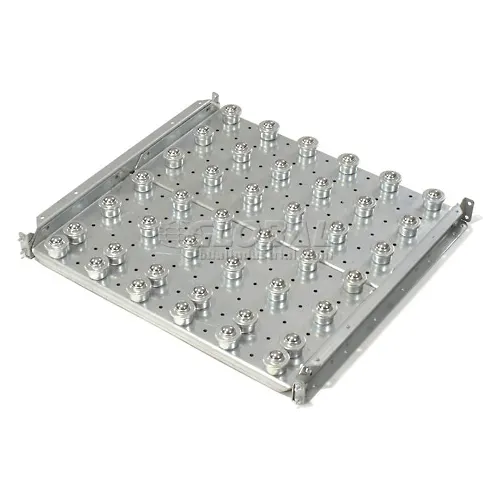

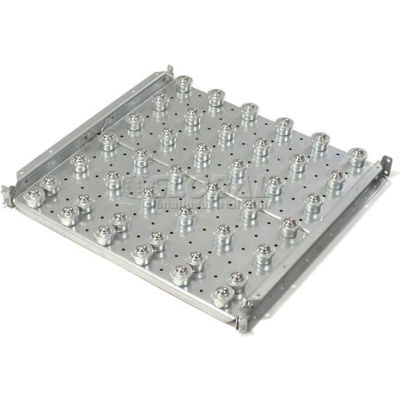

Omni Metalcraft BALL TRANSFER TABLE
Use when products are required to be manually rotated or correctly positioned. Ideal for workstations that require quick, easy handling of a product. Also use when more than 2 conveyor lines converge and packages must be transferred from one line to another. Compatible with 1.9" diameter roller conveyors. 1" diameter stud mount ball casters are set in 1-1/2"W x 3-1/2"H x 10 gauge galvanized steel frame. 65 lb. capacity per ball.
How To Order:
1. Determine the ball table size required. Overall width is determined by adding the Between Frame Width and two 1-1/2" frame sides.
2. Determine the necessary capacity of the table and order accordingly.
3. The closer the centers, the smaller the package size that can be moved.
Use when products are required to be manually rotated or correctly positioned. Ideal for workstations that require quick, easy handling of a product. Also use when more than 2 conveyor lines converge and packages must be transferred from one line to another. Compatible with 1.9" diameter roller conveyors. 1" diameter stud mount ball casters are set in 1-1/2"W x 3-1/2"H x 10 gauge galvanized steel frame. 65 lb. capacity per ball.
How To Order:
1. Determine the ball table size required. Overall width is determined by adding the Between Frame Width and two 1-1/2" frame sides.
2. Determine the necessary capacity of the table and order accordingly.
3. The closer the centers, the smaller the package size that can be moved.
Weights & Dimensions
- Between Frame Width 24 in
- Table Length Range 24 in
- Width 27 in
- Ball Diameter 1 in
- Table Weight Capacity Range 501 to 1500 lbs
- Length 24 in
- Ball Center 3 in
- Table Width Range 21 to 30 in
- Table Between Frame Width Range 21 to 30 in
- Weight Capacity 1,120 lbs
Product Details
- Assembly Required Assembled
- Type Ball Transfer Table
- Brand Omni Metalcraft
- Material Steel
- Manufacturers Part Number BTRD3.5-24-3-2-.25
- Conveyor Section Straight
⚌
