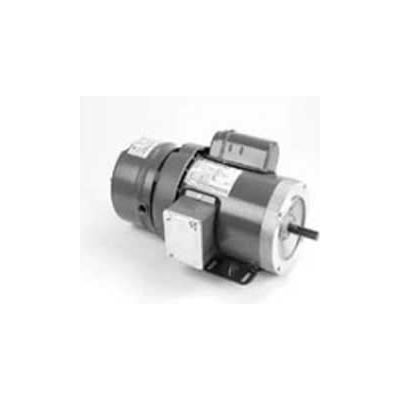

Marathon Motors Brakemotor, D453, 56T11F5326, 1/2HP, 208-230/460V, 1200RPM, 56C FR, 3PH, TEFC

Actual product may differ from image shown

Marathon Motors Brakemotor, D453, 56T11F5326, 1/2HP, 208-230/460V, 1200RPM, 56C FR, 3PH, TEFC

Item #: WBB869456

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 16

Price: $864.00

$144.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Brakemotor, D453, 56T11F5326, 1/2HP, 208-230/460V, 1200RPM, 56C FR, 3PH, TEFC

Marathon's line of brake motors are available in totally enclosed fan cooled, open drip proof, or explosion proof designs, in either Single or Three Phase.

  • HORSEPOWER 1/2
  • ENCLOSURE TEFC
  • FRAME 56C
  • BRAND Marathon Motors
  • MOUNTING C-Face Removable Base
  • MOTOR RPM 60Hz 1200
  • MOTOR RPM 50Hz 1000
  • RPM 1200/1000
  • PHASE 3
  • VOLTAGE 208-230/460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6203
  • WEIGHT 33
  • UL Recognized Construction
  • CSA Y
  • CATALOG NO. D453
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER D453
  • RPM RANGE 1101-1200
  • INSULATION CLASS B
  • FL AMPS 2.4-2.7/1.35
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6203
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END 6203
  • ORIENTATION Horizontal
  • IP CODE 43
  • STARTING TYPE Across the Line
  • NEMA DESIGN B
  • 50 Hertz kW 0.25
  • 50 Hertz HP 1/3
  • 50 Hertz SF 1.15
  • 50 Hertz FL Amps 2.4/1.2
  • FL EFFICIENCY 68
  • 50 Hertz Voltage 190/380
  • 50 Hertz FL eFF 65.50 Percent
  • KVA-CODE L
  • KILOWATS 0.37
  • MODEL NUMBER 56T11F5326
