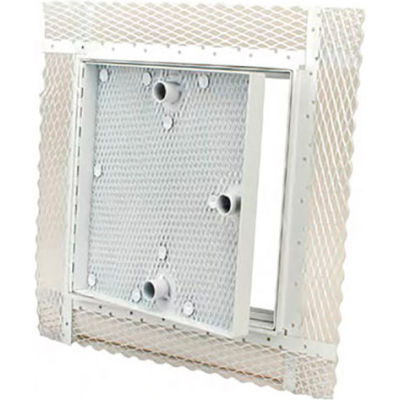

A precision door that provides a virtually concealed installation, keeping acoustical surfaces intact while contributing to sound control and better appearance. Recessed to receive plaster up to 1" thick. Plaster covering the door finishes flush with the surrounding field, leaving only the narrow frame edges exposed. Made in Virginia - USA.
Specifications:
- Door: 14 Gauge steel, with 1" recess lined with expanded metal lath
- Frame: 16 Gauge steel with 1/4" safety edge
- Plaster Bead: 3" wide 24 gauge galvanized casing bead and expanded metal lath - the space from the expanded flange to the 1/4" safety edge of the door will accommodate 3/4" of plaster
- Finish: White baked enamel
- Latches: Flush, stainless steel cam latch
- Hinge: Continuous stainless steel hinge allows opening to 180°
- Application: Walls & ceilings
Product Specifications
- COLOR FINISHGrey
- FOR USE WITHWalls and Ceilings
- DESCRIPTIONRecessed Plaster Access Door
- DOOR HEIGHT INCHES12
- CONSTRUCTIONSteel
- DOOR WIDTH INCHES12
- SERIESAP 510
- MANUFACTURERS PART NUMBERAP 510 12X12
- NUMBER OF LATCHES3
- WEIGHT LBS10
- OPENING DEPTH INCHES2-5/16
- WALL/CEILING OPENING INCHES12-1/4"x12-1/4"
- BRANDThe Williams Brothers
- LATCH TYPECam
