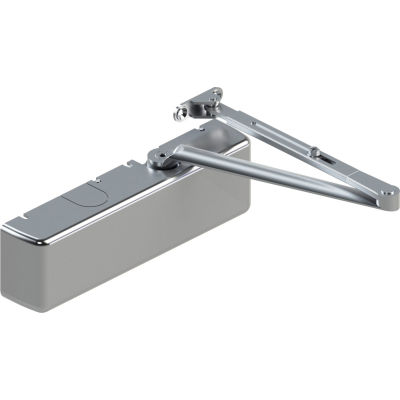

Hager 5100 Series Door Closer 5100 MLT 1-6 ALM DLY

Hager 5100 Series Door Closer 5100 MLT 1-6 ALM DLY

Item #: WBB528670

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $207.95

Quantity

Popular item in this category

Hager 5100 Series Door Closer 5100 MLT 1-6 ALM HO

Usually ships in 5 to 8 days

Not Yet Rated

$206.95

Customers Also Viewed

Hager 5100 Series Door Closer 5100 MLT 1-6 ALM DLY

Features

  • Lifetime warranty
  • Standard package contains 5101 closer body, 5102 closer cover, 5103 main arm assembly, 5104 standard screw pack, 5909 parallel arm bracket, and 5940 SNB screw pack for 1-3/4 (44 mm) doors
  • Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 - Standard
  • ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 - Optional UL/cUL Listed for up to 3 hours, UL10C Positive Pressure Rated UL10B Neutral Pressure Rated
  • Materials: Cast iron
  • Cover: Full plastic cover - Standard,Plated metal cover - Optional
  • Springs: One piece seamless steel spring tube, Double heat treated steel, tempered springs
  • Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve - Standard, Delayed action valve - Optional, Staked valves - Standard
  • Handing: Non-handed
  • Arms & Brackets: Tri-Pack: Regular, Parallel Arm, Top Jamb Mount - Standard
  • Door Thickness: 1-3/4 (44 mm) - Standard, 1-3/8 - 2-1/4 (36 mm - 57 mm) thick door - Optional
  • Fasteners: Self-reaming, self-tapping wood and machine screws, Sex nuts and bolts
  • Finishes: ALM, BRZ, DBZ, GOL, US3, US26, US26D, Rust inhibiting primer - Standard
  • Notes: Full rack and pinion operation, Precision machined, heat treated steel piston
  • Triple heat treated steel spindle

Product Specifications

  • WEIGHT LBS15 lbs
  • GRADE1
  • FITS DOOR THICKNESS INCHES1-3/4" STD, 1-3/8" - 2-1/4" Optional
  • FINISHSprayed Aluminum
  • MOUNTING DIMENSIONS5" x 2-1/4"
  • CERTIFICATION/APPROVALANSI/BHMA A156.4
  • BRANDHager
  • CONSTRUCTIONCast Iron
  • FIRE RATING/APPROVALUL 10C
  • WARRANTYLifetime
  • DESCRIPTION5100 Series Door Closer
  • MANUFACTURERS PART NUMBER5100M16ALM0000D
  • UNITS1
