Hager 5200 Series Door Closer 5200 MLT 1-6 DBZ

Rollover image to zoom in

Click image to enlarge

See all 18 items in product family

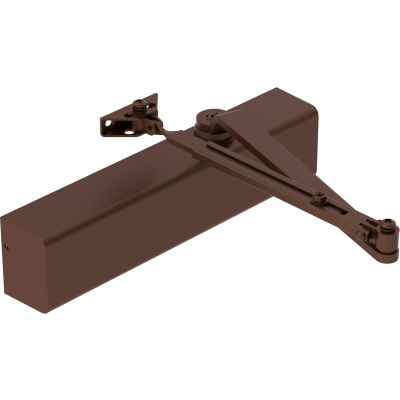

Hager 5200 Series Door Closer 5200 MLT 1-6 DBZ

Item #: WBB486521

Sold By:

Usually ships in 5 to 8 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $193.70 Save up to 32%
Price: $ 130.95
Product Information
Customer Review
Product Q&A
Hager 5200 Series Door Closer 5200 MLT 1-6 DBZ


  • Heavy Duty Surface Door Closer
  • Ideal for schools, hospitals, and other high-use environments
  • Lifetime warranty
  • Standard package contains 5201 closer body, 5202 closer cover, 5203 main arm assembly, 5204 standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" door
  • Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 5 - Standard
  • ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 - Optional
  • UL/cUL Listed for up to 3 hours
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • Material: Aluminum alloy
  • Cover: Full plastic cover - Standard Full size plated metal cover - Optional, Slim line plastic cover - Optional
  • Springs: Double heat treated steel, tempered springs
  • Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve - Standard, Delayed action valve - Optional,Staked valves - Standard
  • Handing: Non-handed
  • Arms & Brackets: Tri-Pack: Regular, Parallel Arm, and Top Jamb Mount - Standard, 15% power adjustment in standard arm for regular and top jamb mount
  • Door Thickness: 1-3/4" (44 mm), 1-3/8" - 2-1/4" (36 mm - 57 mm) - Optional
  • Fasteners: Self-reaming, self-tapping wood and machine screws, Sex nuts and bolts
  • Finishes: ALM, BRZ, DBZ, GOL, US3, US26, US26D, Rust inhibiting primer - Standard
  • Notes: Full rack and pinion operation, Precision machined, heat treated steel piston, Triple heat treated steel spindle

Product Specifications

    • DESCRIPTION5200 Series Door Closer
    • FINISHDark Bronze
