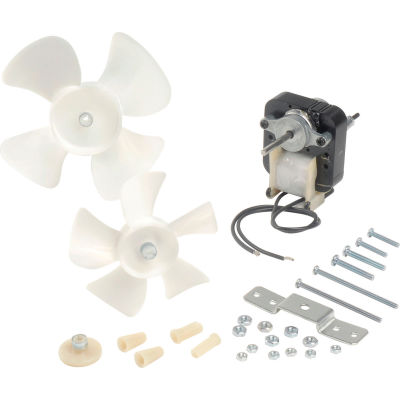

Supco® C Frame Utility Motor Kit/ 120V 3000 RPM rpm
Features/Benefits:
Features/Benefits:
- Versatile replacement for all "C" Frame and 3-1/2" Round Style motors
- Impedance protected
- Include fan blades FB402 and FB500
- Shaft Dimensions are 3/16" x 1-1/4"
- Rotation is CW and CCW
Weights & Dimensions
- Width 1.75 in
- Shaft Length 1-1/4 in
- Height 3 in
- Stack Size 5/8 in
- Shaft Diameter 3/16 in
Product Details
- Mounting Location Stud
- Number of Speeds 1
- Rotation CCW/CW °
- RPM Range 3001-3600 rpm
- Voltage 120 V
- Rated RPM 3000
- Enclosure Type Open/Drip Proof
- Phase 1
- Motor Type Shaded pole
- Compatible Part/Model Number ERP ERM670, Gem EM670, Acme Miami 600,700,710,4670, Robertshaw 14001, Mars 90971
- Brand Supco
- Bearing Type Sleeve
- Full Load Amps 0.55 FLA
- Design Code Split-phase
- Motor RPM 60 Hertz 3000 rpm
- Thermal Protection Impedence
- Hertz 50/60 Hz
- Manufacturers Part Number SM670
Compliance & Certifications
- Certifications UL and CSA
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: GHASSAN
Date: February 16, 2022
-
Reviewer: CHET
Date: January 26, 2021
Your review:
Had to jury rig a number of things to get it to fit, but I was able to get it to fit and work ok. My only complant was the excessive shipping charge. -
Reviewer: BRENT
Date: January 23, 2021
Your review:
The bathroom exhaust fan that I used this one to replace it with was 30+ years old. Hard to find exact matches these days but was able to modify this one a bit by filing the fan blade total width down 1/4". The motor fit on the old mount perfectly. Otherwise, it works fine with less noise than the old one. -
Reviewer: TROY
Date: January 21, 2021
Your review:
Err..... Haven't used it yet.... so no opinion yet... If it blows air at 120 vac I'LL be happy -
Reviewer: CHRISTOPHER
Date: January 20, 2021
Your review:
These motors work great as replacements for Speedotron 102 flash heads -
Reviewer: COLIN
Date: October 08, 2020
Your review:
Excellent service I received my order in two days. It was exactly what I needed. Thank you -
Reviewer: BRYAN
Date: August 20, 2020
Your review:
Very simple to adjust and install, as I used it as a replacement in a wine fridge. RPM'S are excellnet, but it is a little bit noisy. -
Reviewer: Scott
Date: May 06, 2020
Your review:
Worked great as a replacement for a Nutone bathroom fan. I had to connect an AC adapter and fill the motor to spin the opposite direction. Both were very easy fixes and it made the until work like brand new. Very quiet. Thank you -
Reviewer: Daniel
Date: March 19, 2020
Your review:
Well-packaged and shipping promptly. -
Reviewer: RHONDA
Date: February 19, 2020
Your review:
My Fridge is fixed thanks to the part I ordered from you. I thought it was going to cost me a fortune but it didn't
Product Q & A
There are 3 questions and 3 answers for this product.
-
what is the measurement across center to center of the four mounting holes. Thank you, George
Question Asked By: George, December 20, 2018
Answer This Question
Question Answered By:
-
anonymous
Hello George, here are the measurements from left to right: the first hole is 1/4" from the edge to the center, the second hole is 1/2" from the first hole, and the middle hole is 1-1/2" from the second hole. The other side has the exact same dimensions. Thank you for your interest in our product.
-
-
what are the dimensions of the motor mount bar
Question Asked By: Rami, January 10, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Rami, The dimensions are 3-3/8" x 3/4" x 5/16" Thank you for your interest in our product!
-
-
How long is the shaft and what diameter is it? How big are the fans?
Question Asked By: Mike, October 15, 2012
Answer This Question
Question Answered By:
-
Product Expert, October 15, 2012
The shaft dimensions are 3/16 inches x 1-1/4inches. The fan blades are 4 inches and 5-1/2 inches.
-
C Frame Utility Motor Kit/ 120 V 3000 rpm
$14.25
