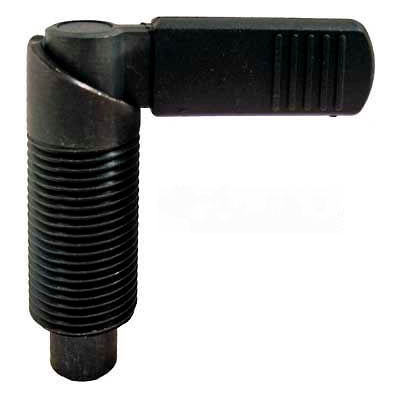

Cam Action Plunger w/ Sleeve Lock-Out Black 12.0x32.0N Pressure M16x1.5 Thread 8x10mm Pin
The cam action indexing plungers are best utilized when the pin needs to be retracted. A groove exists so the plunger can be held in both positions. The new grooved lever arm provides the user with a better grip when operating the mechanism. In addition, the snap-on plastic ribbed sleeve offers a more aesthetically pleasing and comfortable finger grip. Maximum heat resistance of nylon plastic sleeve: 110°C (230°F).
FeaturesBody: Steel, black oxide finish Lever arm: Steel, black oxide finish Plunger pin: Steel, nitrided Jam nut: Steel, black oxide finish, DIN 439/ISO 4035 Plastic sleeve: Matte black glass fiber reinforced nylon plastic, not removable
The cam action indexing plungers are best utilized when the pin needs to be retracted. A groove exists so the plunger can be held in both positions. The new grooved lever arm provides the user with a better grip when operating the mechanism. In addition, the snap-on plastic ribbed sleeve offers a more aesthetically pleasing and comfortable finger grip. Maximum heat resistance of nylon plastic sleeve: 110°C (230°F).
Features
Weights & Dimensions
- Pin Length 10 mm in
- Length 56 mm
- Pin Diameter 8 mm in
- Thread Size M16 x 1.5 in
- Lever Arm Length 42 mm in
- Thread Length 30 mm in
Product Details
- Lock Out Yes
- End Pressure Start 12.0 N
- Description Cam Action Indexing Plunger
- Lock Nut No
- Type With Plastic Sleeve
- End Pressure Full 32.0 N
- Nose Material Steel
- Brand J.W. Winco
- Body Material Black Oxide Steel
Customer Review
Product Q & A
There are no questions for this product.

Cam Action Plunger w/ Sleeve Lock-Out Black 12.0x32.0N Pressure M16x1.5 Thread 8x10mm Pin
$25.95
