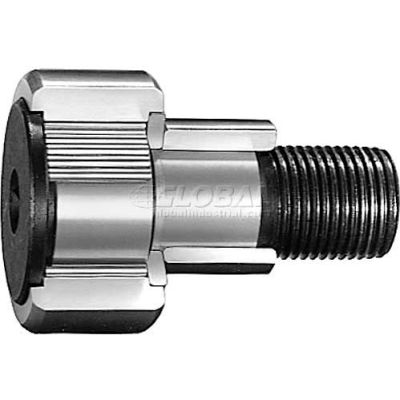

IKO Eccentric Cam Follower-METRIC, Eccentric Collar, Full Complement, Hex Hole, Double Sealed, 30mm OD, 14mm Width, M12 x 1.5 Thread
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. An eccentric collar is fixed to the stud that makes outer ring positioning easier in radial direction against mating track surface. Most of Cam Followers come with prepacked grease. In case grease is not prepacked as indicated in the main page, lubricant must be provided through the oil hole. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. An eccentric collar is fixed to the stud that makes outer ring positioning easier in radial direction against mating track surface. Most of Cam Followers come with prepacked grease. In case grease is not prepacked as indicated in the main page, lubricant must be provided through the oil hole. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
Weights & Dimensions
- Dimension C1 0.6mm in
- Width (C) 14
- Dimension B3 11.5mm
- Dimension H 6mm
- Eccentricity 0.8 mm
- Clamping Diameter (F) Minimum 21
- Min Inner Ring Corner Radius 0.6 in
- Corner Radius (R) 0.6 in
- Collar Diameter (De) 16 mm
- Outside Dimension Tolerance +0 / -0.009 mm
- Outside Dimension (D) 30
- Static Load Rating 19700 N
- Width (C) Tolerance +0 / -0.120
- Max Torque 21.9 lb-in
- Dimension B2 25mm
- Dimension B 15.2mm max
- Dimension G1 13.5mm
- Dimension B1 40.2mm max
Product Details
- Bearing Style Cylindrical OD
- Dynamic Load Rating (N) 13500
- Description Hex Hole
- Track Capacity 7010 N
- Brand IKO
- Series CFE
- Manufacturers Part Number CFE12VBUU
- Permissible Static Load (N) 13200
- Radial Clearance 0.005 to 0.025
- Prepacked Grease Yes
- Temperature Range -20-120 °F
- Thread (G) UNF M12 x 1.5
- Type Double Sealed
- Oil Hole Stud Head, End, Outside
- Needle Construction Full Complement
Photo/Video Gallery
Customer Review
Product Q & A
There are no questions for this product.
IKO Cam Follower ECC Collar Full Comp Hex Hole DBL Sealed 30mm OD 14mm W M12 x 1.5 THR
$52.95
