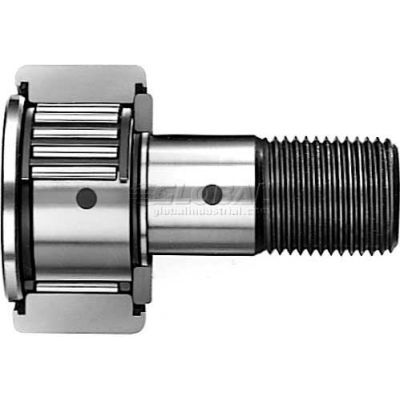

IKO Eccentric Cam Follower-METRIC, Eccentric Stud, Caged, Screwdriver Slot, 19mm OD, 11mm Width, M8 x 1.25 Thread
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. Stud of this Cam Follower is eccentric to the stud that makes outer ring positioning easier in radial direction against mating track surface. Refer to the main page which item comes with prepacked grease. In case grease is not prepacked as indicated in the main page, lubricant must be provided through the oil hole. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. Stud of this Cam Follower is eccentric to the stud that makes outer ring positioning easier in radial direction against mating track surface. Refer to the main page which item comes with prepacked grease. In case grease is not prepacked as indicated in the main page, lubricant must be provided through the oil hole. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
Weights & Dimensions
- Dimension C1 0.6mm in
- Stud Diameter (D1) 8
- Width (C) 11
- Tolerance For Mounting Hole +0.015 / -0
- Eccentricity 0.25 mm
- Tolerance For Stud Diameter +0 / -0.015 mm
- Clamping Diameter (F) Minimum 13
- Corner Radius (R) 0.3 in
- Outside Dimension Tolerance +0 / -0.009 mm
- Outside Dimension (D) 19
- Static Load Rating 4740 N
- Width (C) Tolerance +0 / -0.120
- Max Torque 6.5 lb-in
- Dimension B2 20mm
- Dimension B 12.2 mm max
- Dimension G1 10mm
- Dimension B1 32.2mm max
Product Details
- Prepacked Grease No, Add lubricant
- Temperature Range -20-120 °F
- Thread (G) UNF M8 x 1.25
- Oil Hole Stud head only
- Needle Construction Caged
- Bearing Style Cylindrical OD
- Dynamic Load Rating (N) 4250
- Description Screwdriver Slot
- Track Capacity 4040 N
- Brand IKO
- Series CFES
- Manufacturers Part Number CFES8
- Permissible Static Load (N) 4620
- Radial Clearance 0.005 to 0.025
Photo/Video Gallery
Customer Review
Product Q & A
There are no questions for this product.
IKO Cam Follower ECC Stud Caged Screwdriver Slot 19mm OD 11mm W M8 x 1.25 THR
$39.95
