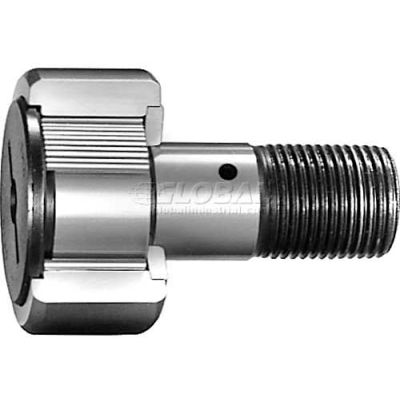

IKO Cam Follower-INCH HD Full Comp Hex Hole 1-1/8" OD 5/8"W 5/8 - 18 THR

Shown with Screwdriver Slot

IKO Cam Follower-INCH HD Full Comp Hex Hole 1-1/8" OD 5/8"W 5/8 - 18 THR

Item #: WBB1173435

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • Crowned OD
  • Cylindrical OD

Cylindrical OD

Minimum Quantity: 3

Price: $15.00

Save $0.75 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

IKO Cam Follower-INCH, Heavy Duty, Full Complement, Hex Hole, 1-1/8" OD, 5/8" Width, 5/8 - 18 Thread

IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.

  • BRAND IKO
  • BEARING STYLE Cylindrical OD
  • DYNAMIC LOAD RATING (N) 13100
  • STATIC LOAD RATING (N) 22700
  • DIMENSION B 17.9mm (0.70")
  • O.D. TOLERANCE (mm) +0 / -0.25
  • OD (D) mm/inch 28.575 (1-1/8)
  • MANUFACTURERS PART NUMBER CRH18VB
  • DESCRIPTION Hex Hole
  • OIL HOLE Stud End, Stud Outside
  • TYPE --
  • WIDTH (C) mm/inch 15.875 (5/8)
  • SERIES CR
  • TORQUE MAX (Nm) 57.8
  • WIDTH (C) TOLERANCE (mm) +0 / -0.130
  • DIMENSION g2 2.381mm (3/32")
  • NEEDLE CONSTRUCTION Full Complement
  • DIMENSION H 6.350mm (1/4")
  • DIMENSION g1 4.762mm (3/16")
  • CROWN RADIUS (R) mm (inch) --
  • CORNER RADIUS ( r ) mm (inch) 1.588 (1/16)
  • TRACK CAPACITY (N) 7710
  • CLAMPING DIAMETER (f) MINIMUM mm (inch) 18.256 (23/32)
  • DIMENSION G1 12.700mm (1/2")
  • STUD DIAMETER (d1) mm (inch) 15.875 (5/8)
  • TOLERANCE FOR MOUNTING HOLE (mm / inch) +0.034 / +0.016 (+.0013 / +.0006)
  • TOLERANCE FOR STUD DIAMETER (mm) +0.25 / -0
  • TEMPERATURE RANGE °F -20°-120°F
  • DIMENSION B3 6.350mm (1/4")
  • THREAD (G) UNF 5/8 - 18
  • RADIAL CLEARANCE 0.005 to 0.025
  • DIMENSION b2 25.400mm (1")
  • DIMENSION C1 1.588mm (1/16")
