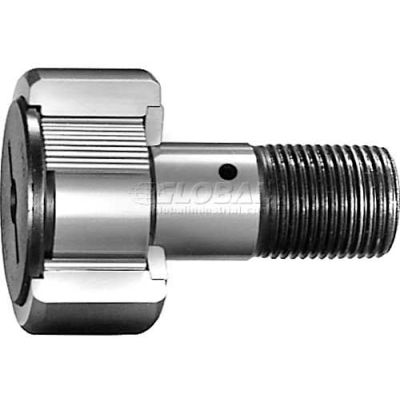

IKO Cam Follower-INCH, Heavy Duty, Full Complement, Screwdriver Slot, 7/8" OD, 1/2" Width, 7/16 - 20 Thread
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
Weights & Dimensions
- Dimension C1 0.794mm (1/32) in
- Stud Diameter (D1) 11.112 (7/16)
- Width (C) 12.700 (1/2)
- Dimension B3 6.350mm (1/4")
- Tolerance For Mounting Hole +0.034 / +0.016 (+.0013 / +.0006)
- Tolerance For Stud Diameter +0.25 / -0 mm
- Clamping Diameter (F) Minimum 13.494 (17/32)
- Corner Radius (R) 0.794 (1/32) in
- Outside Dimension Tolerance +0 / -0.25 mm
- Outside Dimension (D) 22.225 (7/8)
- Static Load Rating 12300 N
- Width (C) Tolerance +0 / -0.130
- Max Torque 17.6 lb-in
- Dimension B2 22.225mm (7/8")
- Dimension G2 2.381mm (3/32")
- Dimension B 14.6mm (0.57")
- Dimension G1 9.525mm (3/8")
Product Details
- Temperature Range -20-120 °F
- Thread (G) UNF 7/16 - 20
- Oil Hole Stud Head, End, Outside
- Needle Construction Full Complement
- Bearing Style Cylindrical OD
- Dynamic Load Rating (N) 8710
- Description Screwdriver Slot
- Track Capacity 5250 N
- Brand IKO
- Series CR
- Manufacturers Part Number CRH14V
- Radial Clearance 0.005 to 0.025
