Worldwide Electric Close Coupled Motor, TEFC, 20 HP, 3600 RPM, 230/460V, 256JM Frame, C-Face w/ Feet

Name: Worldwide Electric Close Coupled Motor, TEFC, 20 HP, 3600 RPM, 230/460V, 256JM Frame, C-Face w/ Feet
Brand: Worldwide Electric Corporation
SKU: B763193
Price: 2349.0 USD
Availability: InStock

Write a Review

Questions & Answers (0)

Product Description

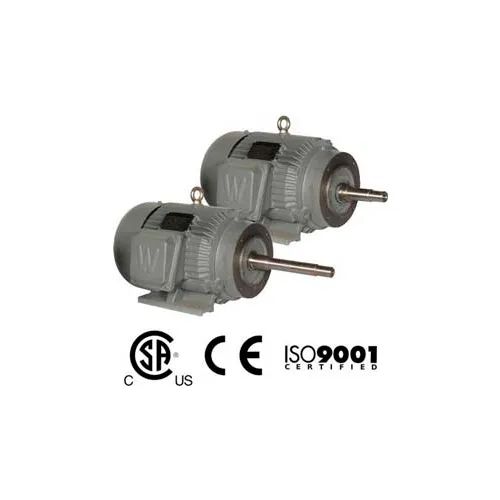

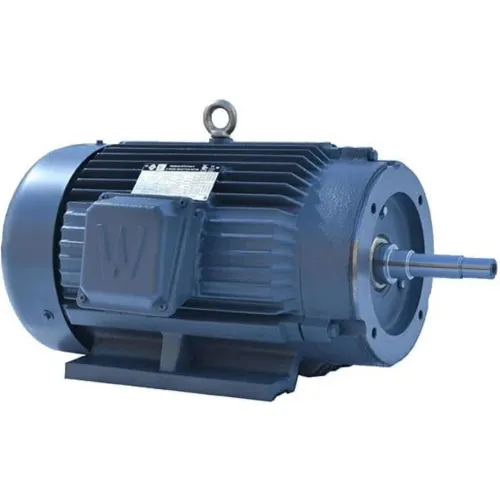

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details.

Designed to meet the demands of pumping applications. Worldwide Electric is a leading manufacturer of Pump Motors, supplying efficient, high-performance solutions for commercial, industrial, and municipal water systems.

Close-coupled – Totally Enclosed Fan Cooled (TEFC)Worldwide Electric's Close-coupled Pump Motors are Ideal for centrifugal pump applications requiring JM or JP shafts, they meet or exceed requirements for premium efficiency.

230/460 Volt

Totally Enclosed Fan Cooled (TEFC) Enclosure

IP55 Protection

1.15 SF

Class F Insulation

C-Face with Feet

Premium Efficiency

Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF)

Spike Resistant Wire, per NEMA MG-1, Part 31

Class 1, Division 2, Groups A, B, C, D

*Suitable for 50 Hz Operation with 1.0 SF

PRICE

$2,349.00

Ships in 3 Business Days

Add or Change Zip Code(s)

Easy online or call-in returns. Read return policy

Specifications

Weights & Dimensions

Weight	331 lbs
Dimension C	26-7/8 in

Frame Size

256JM

Product Details

RPM	3,600 rpm
Efficiency	High
Horsepower	20 HP
Frame	256JM
Motor Type	Close Coupled Pump
Motor RPM 60 Hertz	3600 rpm
Enclosure Type	(TEFC) Totally Enclosed
Voltage	230/460 V

Full Load Efficiency	90.2
Phase	3
Full Load Amps	22.5 FLA
Manufacturers Part Number	PEWWE20-36-256JM
Service Factor	1.15
RPM Range	3001-3600 rpm
Brand	Worldwide Electric Corporation
