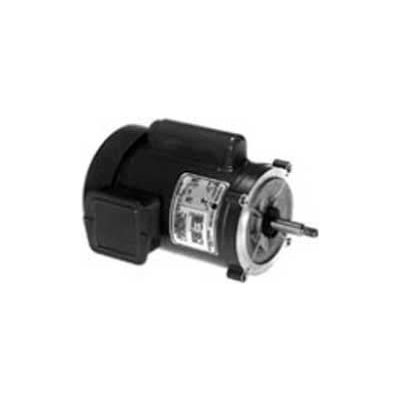

Marathon Motors Centrifugal Pump Motor, C878, 2HP, 115/230V, 3600RPM, 1PH, 56J FR, TEFC
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
Product Details
- Mounting Location C-Face Footless
- Bearing Drive End 6203
- RPM 3600 rpm
- Rotation CW °
- Ambient Temperature 40 °C
- KVA Code G
- Insulation Class B
- RPM Range 3001-3600 rpm
- Voltage 115/230 V
- Frame 56J
- Service Factor 1
- Horsepower 2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Enclosure TEFC
- Phase 1
- Orientation Horizontal or Vertical
- 60 Hertz RPM 3600 rpm
- Starting Type Switch and Mech
- Full Load Efficiency 0
- Brand Marathon Motors
- Full Load Amps 17.8/8.9 FLA
- Motor RPM 60 Hertz 3600 rpm
- Thermal Protection Automatic
- Manufacturers Part Number C878
Compliance & Certifications
- CSA Certified Y
- UL Y
Weights & Dimensions
- Drive End Bearing Size 6203
- Opposite End Bearing Size 6203
- Weight 38 lbs
Customer Review
Product Q & A
There are no questions for this product.

Marathon Motors Centrifugal Pump Motor, C878, 2HP, 115/230V, 3600RPM, 1PH, 56J FR, TEFC
$186.95
