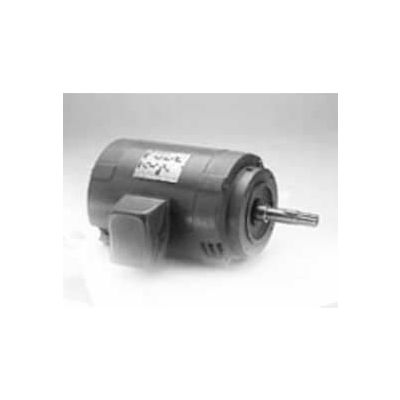

Marathon Motors Closed-Coupled Pump Motor, E102, 1.5HP, 230/460V, 1800RPM, 3PH, 143JM FR, DP

Actual product may differ from image shown

Marathon Motors Closed-Coupled Pump Motor, E102, 1.5HP, 230/460V, 1800RPM, 3PH, 143JM FR, DP

Item #: WBB869320

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $210.95

Save $10.55 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors Closed-Coupled Pump Motor, E102, 1.5HP, 230/460V, 1800RPM, 3PH, 143JM FR, DP

Close-coupled pumps where the pump impeller is mounted directly on the motor shaft in environments that are relatively clean and dry.

  • HORSEPOWER 1 1/2
  • ENCLOSURE DP
  • FRAME 143JM
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1800
  • MOTOR RPM 50Hz 1500
  • RPM 1800/1500
  • PHASE 3
  • VOLTAGE 230/460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Open/Drip Proof
  • OPPOSITE END BEARING 6203
  • WEIGHT 44
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER E102
  • RPM RANGE 1701-1800
  • INSULATION CLASS B
  • FL AMPS 4.4/2.2
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6206
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END 6206
  • ORIENTATION Horizontal
  • IP CODE 22
  • STARTING TYPE Across the Line
  • NEMA DESIGN B
  • 50 Hertz kW 0.75
  • 50 Hertz HP 1
  • 50 Hertz SF 1.15
  • FL EFFICIENCY 84
  • 50 Hertz FL Amps 3.8/1.9
  • 50 Hertz Voltage 190/380
  • 50 Hertz FL eFF 82.50 Percent
  • is_motor Yes
  • KVA-CODE M
  • 60 HERTZ kW 1.12
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 145TTDR4034
