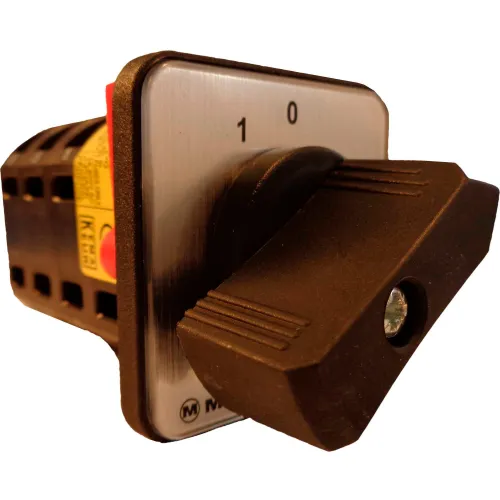

Springer Controls / MERZ W105/3-AA, Reversing Switch, Maintained, 3-Pole, 16A, 4-hole front-mount

Springer Controls / MERZ W105/3-AA, Reversing Switch, Maintained, 3-Pole, 16A, 4-hole front-mount

Item #: WBB2022356

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $38.95

Save $1.95 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Springer Controls / MERZ W105/7-AA, Reversing Switch, Spring Returned, 3-Pole,16A,4-hole front-mount

Springer Controls / MERZ W105/7-AA, Reversing Switch, Spring Returned, 3-Pole,16A,4-hole front-mount

Springer Controls / MERZ W251/3-AB, Reversing Switch, Maintained, 3-Pole, 25A, 4-hole front-mount

Springer Controls / MERZ W251/3-AB, Reversing Switch, Maintained, 3-Pole, 25A, 4-hole front-mount

Springer Controls / MERZ W656/3-AC, Reversing Switch, Maintained, 3-Pole, 80A, 4-hole front-mount

Springer Controls / MERZ W656/3-AC, Reversing Switch, Maintained, 3-Pole, 80A, 4-hole front-mount

Advance Controls 128448, Single Phase Drum Switch Momentary

Advance Controls 128448, Single Phase Drum Switch Momentary

Advance Controls 128447, Single Phase Drum Switch Maintained

Advance Controls 128447, Single Phase Drum Switch Maintained

Springer Controls/MERZ W151/3-I2-CA,20A,3-POLE,Encl. Reversing Switch,Maintained Lever Handle

Springer Controls/MERZ W151/3-I2-CA,20A,3-POLE,Encl. Reversing Switch,Maintained Lever Handle

Springer Controls/MERZ W451/3-I3-CA,40A,3-POLE,Encl. Reversing Switch,Maintained Lever Handle

Springer Controls/MERZ W451/3-I3-CA,40A,3-POLE,Encl. Reversing Switch,Maintained Lever Handle

Item # N7SCD0A1195, N7 (30 mm) Keyed Selector Switches

Item # N7SCD0A1195, N7 (30 mm) Keyed Selector Switches

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Advance Controls 134801 CK28.311 Contactor, 3-Pole, 120V

Advance Controls 134801 CK28.311 Contactor, 3-Pole, 120V

Springer Controls / MERZ W105/3-AA, Reversing Switch, Maintained, 3-Pole, 16A, 4-hole front-mount

MERZ has long been the industry standard in UL certified switches. MERZ cam switches are second to none for quality and reliability. Springer Controls-MERZ switches are available in models from 16 amp to 125 amp. These UL certified switches are suitable for residential and industrial applications. This item is a 4-screw, front-panel mounting-cam switch. Both the switch and the handle are attached to the panel or wall by these four screws (included.) Cam switches, according to their contact arrangement, are fitted with switching chambers with 1, 2, or 3 (series 111 only) double interrupted conduct paths. Each conduct path is arranged of 2 firmly seated terminals and one mobile contact bridge which is guided by a plunger. The contact bridge is positively opened by the cam and closed by a spring. The indexing device is available in different torques and 4 different switching angles. The finger proof cam switches are equipped with screws with captive plus-minus screw heads. All terminals are fitted with screwdriver guiding, funnel-shaped cable entries and chamber like design. Cable end stops assure the correct insertion depth. If the type of switch that you require is not listed, please contact Global Industrial Equipment. All cam switches are also alvailable as a complete (enclosed) unit. Additional switch types are available upon special request. Switch to Quality.

Weights & Dimensions

  • Depth 1.83 in
  • Width 1.42 in
  • Height 1.73 in
  • Weight 0.231485375 lbs

Product Details

  • Amperage 16 A
  • AWG 16-10
  • Includes Switch, Handle, 4 Screws
  • Max Voltage 600V V
  • Handle Color Family Black
  • Brand Springer Controls
  • Poles 3
  • Manufacturers Part Number W105/3-AA

Compliance & Certifications

  • Certifications cULus
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.
