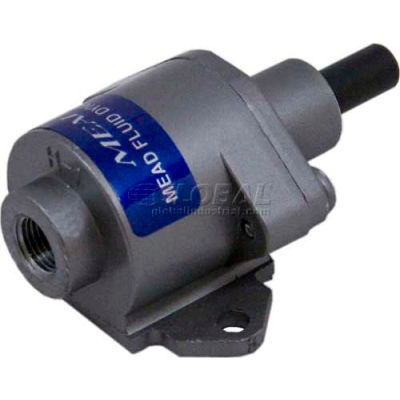

Bimba-Mead Cylinder H-1, Single Acting 1" Bore, 11/16" Stroke, Single Side Lug Mount
Single-Acting Air Clamps Provide gripping power on the out stroke and spring retraction. They are ideal for use in drill fixtures and for bending, swaging, forming, crimping, & pressing operations. Because 3-way values may be used, hook-ups are quick and easy.
Single-Acting Air Clamps Provide gripping power on the out stroke and spring retraction. They are ideal for use in drill fixtures and for bending, swaging, forming, crimping, & pressing operations. Because 3-way values may be used, hook-ups are quick and easy.
Weights & Dimensions
- Width 2 in
- Return Max Weight 39 lbs
- Output Force (@ 100 PSI) 68 lbs
- Length 2-25/32 in
- Height 1-1/4 in
- Bore 1 in
- Stroke 11/16 in
Product Details
- Max Operating Pressure 150 psi
- Temperature Range -40 to +250 °F
- Body Cover Material Cast Aluminum
- Brand Bimba-Mead
- Lubrication Petroleum Based Oil
- Filtration 40 Micron Minimum mic
- Manufacturers Part Number H-1
Compliance & Certifications
- Mounting Standard Pneumatic
Customer Review
Product Q & A
There are no questions for this product.

Bimba-Mead Cylinder H-1, Single Acting 1" Bore, 11/16" Stroke, Single Side Lug Mount
$76.95
