Marathon Motors, D395, 056T34F5305, 2-1-1/2HP, 3600RPM, 208-230/460V, 3PH, 56HC FR, TEFC

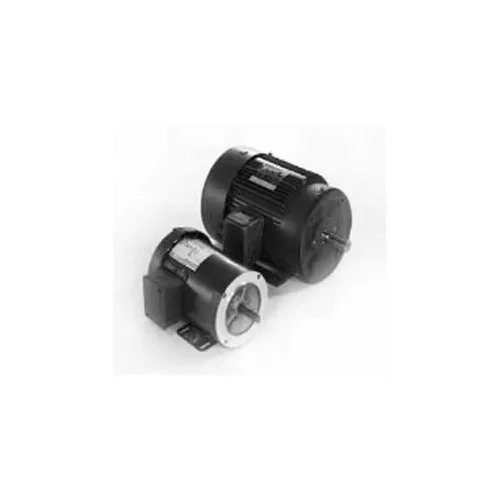

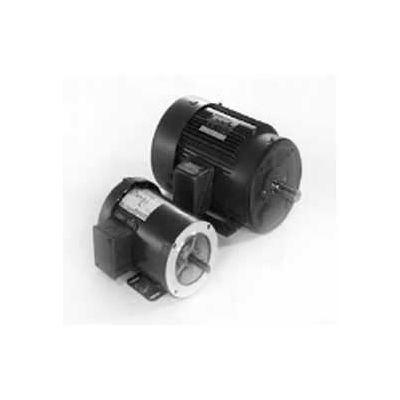

Actual product may differ from image shown

Marathon Motors, D395, 056T34F5305, 2-1-1/2HP, 3600RPM, 208-230/460V, 3PH, 56HC FR, TEFC

Item #: WBB871075

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $415.95

Save $20.80 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors, D395, 056T34F5305, 2-1 1/2HP, 3600RPM, 208-230/460V, 3PH, 56HC FR, TEFC

Marathon's Three Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 1500 HP.

  • HORSEPOWER 2
  • ENCLOSURE TEFC
  • FRAME 56HC
  • MOUNTING C-Face Removable Base
  • NAMEPLATE RPM 3600
  • PHASE 3
  • MOTOR RPM 60Hz 3600
  • VOLTAGE 208-230/460
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 30
  • UL Recognized Construction
  • CSA Y
  • RPM RANGE 3001-3600
  • ENCLOSURE TYPE Totally Enclosed
  • IP CODE 43
  • is_motor Yes
  • ORIENTATION Horizontal or Up or Down
  • MANUFACTURER PART # D395
  • 50 Hertz SF 1.15
  • 50 HERTZ FL AMPS 5.6/2.8
  • BRAND Marathon Motors
  • 50 HERTZ VOLTAGE 190/380
  • STARTING TYPE Across The Line
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6203
  • NEMA DESIGN B
  • APPROVAL-CE Y
  • ASSEMBLY F1 Only
  • 50 Hertz FL eFF 80.00 Percent
  • KVA-CODE L
  • 50 HERTZ RPM 3000
  • 50 Hertz kW 1.12
  • 50 Hertz HP 1-1/2
  • FL AMPS 6-6/3
  • INSULATION CLASS F
  • FL EFFICIENCY 80.00 Percent
  • BEARING-OPP-DRIVE-END 6203
  • BEARING-DRIVE-END 6203
  • 60 HERTZ kW 1.49
  • MODEL NUMBER 056T34F5305
