- 200 PSI max tank storage pressure provides a user with 80% more usable air than the industry leader
- 5.2 SCFM @ 90 PSI allows the compressor to recover quickly after its initial tank charge is exhausted
- Vertical stand feature and collapsible handle allows a user to save space by transporting or storing the compressor in a vertical position
- 78 dBA* operational noise level for a quieter work environment (* tested per ISO3477)
- 10" non-flat foam tires allow for easy transportation around the jobsite
- EHP® Efficient high pressure technology allows for longer pump and motor life
- Oil free, maintenance free pump for convenient use
- Efficient high pressure motor allows the compressor to be run with an extension cord (12 Ga. or heavier, 50 ft. or less) due to consistent amp draw requirement of the compressor
- Metal console panel provides a display area as well as protects the gauges, couplers, and regulator
- High flow coupler allows for maximum nailer performance
- 2 inch gauges allow for an easy to read surface
- 1 Year Free Service Contract
- 1 Year Limited Warranty
- 30 Day Money Back Guarantee
Weights & Dimensions
- Weight 83 lbs
- Tank Size 4.5 gal
- Tank Outlet 1/4"
- Width 23 in
- Length 33-1/2 in
- Height 15 in
Product Details
- Tank Drain Valve Manual
- Pump Type Single-Stage
- Air Dryer No
- Air Filter No
- CFM @ 90 PSI 5 CFM
- Type Portable
- After Cooler No
- Tank Orientation Horizontal
- Material Cast Iron
- Style Horizontal
- Savings Everyday Low Price
- Oil System Oil Free
- CFM 5 CFM
- Oil Sight Glass No
- Voltage 120 V
- Description Single Stage Electric Compressor
- Pump Material Cast Iron
- Low Oil Shutoff No
- Oil Type Oil Free
- Horsepower 1.6 HP
- Pressure Dew Point No
- Max PSI 200 psi
- Phase 1
- Pre Filter No
- Start Type Electric
- Brand DeWalt
- Pump Drive Belt Drive
- Wheels (2) Flat-Free Tire
- Manufacturers Part Number D55146
- Color Family Yellow
Warranty
- Warranty 3 yr
There are 1 questions and 1 answer for this product.
-
What is the amp. draw on this unit? Will it operate on a 15 amp. outlet?
Question Asked By: wes weimer, November 05, 2019
Answer This Question
Question Answered By:
-
Product Expert, November 06, 2019
15AMPS. DeWalt does say a 20AMP service is optimal, but 15AMP is the correct draws.
-

DeWALT D55040 Quadraport Air Line Splitter With Regulator & 1/4" Couplers
Item #: 602299
Not Yet Rated
Free Shipping
$98.95

Cejn® PUR Hose Kit 1/4" ID 20' OAL 1/4" MNPT, Spiral Non-Braided Blue 1/4" Body Size Nipple
Item #: 602291
Not Yet Rated
$36.95

Milton Dual Head Chuck Bayonet Inflator Gauge, 10 to 120 PSI, 12" Hose - S-522
Item #: B2273305
Not Yet Rated
$71.95

Legacy™ AGKIT 6 Piece Air Blow Gun Kit Set
Item #: 634176
Not Yet Rated
Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.
$35.95

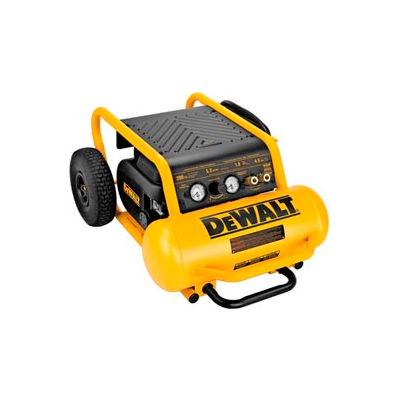

DeWALT® D55146, Portable Electric Air Compressor, 1.6HP, 4.5 Gallon, Horizontal, 5 CFM
