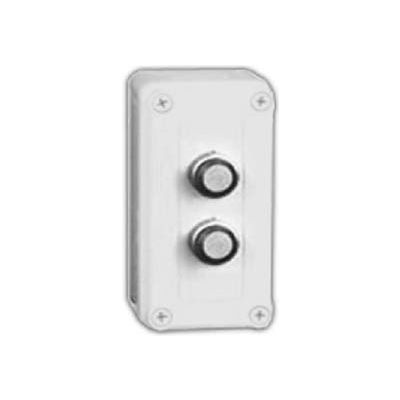

Vynckier Vm533-Pbm2 Vm 5" X 3" X 3" Non-Metallic Enclosure, Two 22.5mm Push Button Holes - Min Qty 3

Vynckier Vm533-Pbm2 Vm 5" X 3" X 3" Non-Metallic Enclosure, Two 22.5mm Push Button Holes - Min Qty 3

Item #: WBB692894

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 3

Price: $51.95

Save $2.60 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Vynckier VM533-PBM2 VM 5" X 3" X 3" Non-Metallic Enclosure, Two 22.5MM Push Button Holes

The VM Series range in size from from 4" x 3" to 9" x 3", varying depths, 13 sizes and a variety of configurations.The VM series "PB" enclosures include an opaque cover, pre-cut pushbutton holes (22.5MM or 30.5mm) and 4 non-metallic corner screwsOpaque covers and all bases are made of impact and corrosive resistant VALOX® 357U thermoplastic polyester, light grey (RAL7035).Molded internal bosses for back panel mounting of components or DIN rails.ASTM D 648 up to 280°F (138°C) heat deflection temperature.Tongue, groove gasket fitting to ensure a tight seal.Seamless poured polyurethane gasket provides oil-resistant, watertight, dust tight seal.VALOX® material is easily punched, drilled, sawed or filed.VALOX® is a crystalline thermoplastic polyester.VALOX® resin offers a performance profile engineered for demanding end-use environments.The VM Series enclosure is designed for use as insulated electrical junction boxes, terminal wiring boxes, instrument housings, electrical control boxes and pushbutton housings in wet, dusty and corrosive environments. StandardsProtection degree: IP66 (IEC 529) ApprovalsUL Listed types: 4, 4x, 3, 3R, 12, 13CSA Listed types: 4, 4x, 3, 3R, 12, 13NEMA Rating types: 4, 4x, 3, 3R, 12, 13

Product Specifications

  • BRANDVynckier
  • MANUFACTURERS PART NUMBERVM533-PBM2
  • TYPEEnclosure
  • CONSTRUCTIONNon-Metallic
  • SERIESVM
  • INSIDE HEIGHT INCHES4.69
  • OUTSIDE DEPTH INCHES3.02
  • OUTSIDE WIDTH INCHES3.06
  • OUTSIDE HEIGHT INCHES5.03
  • INSIDE DEPTH INCHES2.72
  • HOLES2 Push Button
  • INSIDE WIDTH INCHES2.61
  • TEMPERATURE RESISTANCE (C)+138
  • TEMPERATURE RESISTANCE (F)+280
  • BACKPLATE DIMENSIONS - H X W "4.21 x 2.25
  • BACKPLATE PART NO. VMBP53A
  • NEMA RATING3, 3R, 4, 4X, 12 and 13
