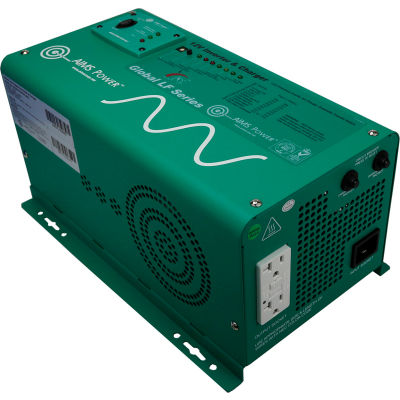

AIMS 1250 Watt Low Frequency Pure Sine Inverter Charger 12 Vdc to 120 Vac, PICOGLF12W12V120AL

AIMS 1250 Watt Low Frequency Pure Sine Inverter Charger 12 Vdc to 120 Vac, PICOGLF12W12V120AL

Item #: WBB2305147

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $467.00

Save $23.35 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

AIMS 1250 Watt Low Frequency Pure Sine Inverter Charger 12 Vdc to 120 Vac

The AIMS 1250 watt low frequency inverter charger is perfect for most off grid systems, semi-trucks, 5th wheels, toy haulers or any remote locations needing power. Providing 1250 watts of continuous, clean and reliable pure sine wave power, ideal for sensitive electronics and household appliances. AIMS developed this inverter with less bells and whistles, making if more affordable and easy to use for applications that don't require a lot of extra features. We consider this our better of our good, better, best product lines.

If needed, this inverter has the capability of producing 3750 watts of total surge power for 20 seconds, for start-up applications like refrigerators, computers, tools, motors, fans and microwaves (if running more than 3000 watt often, we strongly recommend purchasing a larger inverter).

This inverter boasts a 35 amp charger and automatic transfer switch. For use with shore power or generator power to recharge your batteries or as a back-up for your sump pump, medical equipment, appliances, tools and most anything up to 10 AC amps. 1250 watt continuous 3750 watt surge for 20 seconds 300% surge capability (don't use the surge mode often)

Features:
  • AC input cable
  • GFCI outlet
  • Marine coated and protected
  • Multi stage smart charger 35 A
  • LCD remote panel available
  • Thermal and load based fan
  • Low voltage recovery
  • Power save mode
  • Auto frequency
  • 10msec typical transfer time
  • Optional 25W power save mode
  • 7 battery type settings for charger
  • 1 year warranty and free tech support (no dip switches, optional battery temp sensor or auto gen start)

    Output Specifications:
    • Continuous output power: 1250 Watt
    • Surge rating: 3750 Watt (20 Seconds)
    • Output waveform: pure sine
    • Output voltage: 100/110/ 120 VAC
    • Nominal efficiency: >88% (peak)
    • Line mode efficiency: >95%
    • Output frequency: 60Hz +/- 0.3Hz
    • Typical transfer time: 10ms (max)
    • GFCI: 10 A outlet
    • THD: < 10% DC
    • Output breaker-15 amps


    • Input Specifications:
      • Nominal input voltage: 12.0 VDC
      • Minimum start voltage: 10.0 VDC
      • Low battery alarm: 10.5 Vdc-11.0 VDC
      • Low battery trip: 10.0Vdc-10.5 VDC
      • High voltage alarm: 16.0 VDC
      • Charger/input breaker-15 A
      • Low battery voltage restart: 15.5 VDC
      • Idle consumption:<50 Watt when power saver on


      • Charger Specifications:
        • Output voltage: depends on battery type
        • Charger rate: 35A
        • Over charge protection shutdown: 15.7V
        • Selectable charge setting based on battery type
        • Adjustable charge current off-20%-100%
        • Four stage smart charger


        • Transfer Switch Specifications:
          • 10 A automatic transfer load
          • 10 ms (max) transfer time


          • Dimensions:
            • Unit size L x W x H: 15 3/4"x 8 3/4"x 7 3/8"
            • Shipping size: L x W x H: 20-3/4"x 12-3/4"x 12-1/2"
            • Unit weight: 38 lbs.
            • Shipping weight: 42 lbs.


Product Specifications

  • SUGGESTED ADD ONSREMOTELF, REMOTELED
  • DESCRIPTION1250 Watt Low Frequency Pure Sine Inverter Charger 12 Vdc to 120 Vac
  • DC AMPS104
  • AC AMPS10.4
  • DC INPUT / OPERATING VOLTAGE10-16 VDC
  • SURGE WATTS3750
  • CONTINUOUS OUTPUT POWER (WATTS)1250
  • MANUFACTURERS PART NUMBERPICOGLF12W12V120AL
  • BRANDAIMS Power
  • WEIGHT LBS38
  • HEIGHT INCHES7-3/8
  • WIDTH INCHES8-3/4
  • LENGTH INCHES15-3/4
  • INTERNAL FUSE PROTECTIONYes
  • OUTLET SOCKET TYPEGFCI Resetable 20 amp AC Outlet
  • NO LOAD CURRENT<50 Watts (power saver on)
  • OUTPUT VOLTAGE120 VAC
