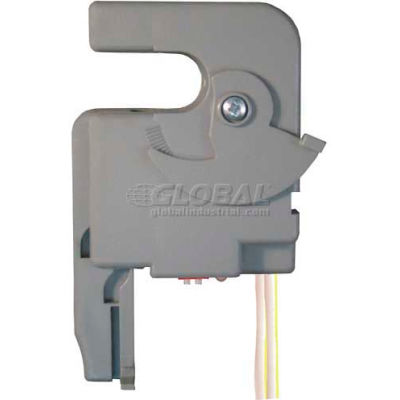

RIB® Enclosed Split-Core AC Sensor RIBXGA-SCAL, Adj., 3-150A, Self-Calibrating, Wire Leads

RIB® Enclosed Split-Core AC Sensor RIBXGA-SCAL, Adj., 3-150A, Self-Calibrating, Wire Leads

Item #: WBB1034115

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$76.74 up to 49% OFF

Price: $38.95

Save $1.95 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

RIB® Enclosed Split-Core AC Sensor RIBXGA-SCAL, Adj., 3-150A, Self-Calibrating, Wire Leads

The X Series contains current sensors with or without a 10 or 20 Amp relay. An internal 10 Amp relay can be used to activate an external contactor, and currents up to 150 Amps are sensed externally with a Solid or Split current sensing ring. Other units control and sense up to 20 Amp loads, without the use of an external current ring, greatly reducing installation time. Models are available with fixed, or adjustable current sensing trigger points, or with voltage out. Externally visible LEDs indicate the status of the relay coil and current sensor trigger. The (Closed-Open-Auto) override switch, available on certain models, is a true override switch located on the load side of the relay.

Product Specifications

  • VOLTAGE30VAC/DC
  • CONTACT TYPESPST
  • # RELAYS--
  • WARRANTY YEARS1
  • LENGTH INCHES2.52
  • WIRE SIZE16"
  • HUMIDITY RANGE5 To 95 Percent (Noncondensing)
  • BRANDRIB®
  • WIRE RATING600V
  • MANUFACTURERS PART NUMBERRIBXGA-SCAL
  • APPROVALS OR CERTIFICATIONSUL Listed
  • WIDTH INCHES2
  • AMPS3-150
  • OPERATING TEMPERATURE-30° To 140°F
  • THRESHOLDAdjustable
  • HEIGHT INCHES1.75
  • DESCRIPTIONEnclosed Split-Core AC Sensor, Wire Leads
