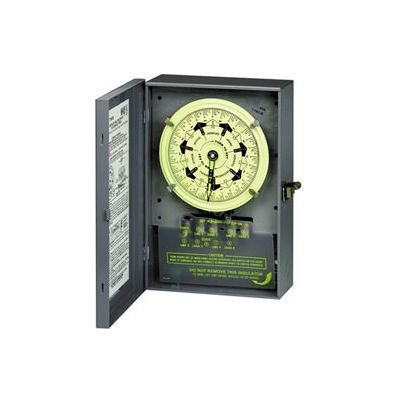

Intermatic T7401B NEMA1-7 Day Dial Time Switch, Separate Clock Motor And Circuit Terminals, 125V

Intermatic T7401B NEMA1-7 Day Dial Time Switch, Separate Clock Motor And Circuit Terminals, 125V

Item #: WBB200424

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $177.95

Save $8.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

These time switches provide a different "ON/OFF" program each day of the week. They also provide for 4 pole single throw and 4 pole (2NO/2NC) switching. This series provides true 7-day load control with minimum ON and minimum OFF times of 3-1/2 hours. The "BC" models with carryover provide a carryover of 16 hours minimum to maintain accurate load control even during power failure. When power resumes, the carryover automatically rewinds itself. Only 1 hour is required to rewind the carryover for each 2 hours of outage. Resistive Wattage is 40 Amp @120 - 480 VAC; Tungsten Wattage is 40 Amp 120 - 277 VAC. Product features 2 HP (24 FLA) 120 VAC; 5 HP (28 FLA) 240 VAC single phase; 7-1/2 HP (28 FLA) 208 VAC three phase; 10 HP (28 FLA) 240 VAC three phase motor.

Product Specifications

  • AMPS40
  • BRANDIntermatic
  • COLOR FINISHGray
  • DEPTH INCHES4
  • HEIGHT INCHES12.5
  • MANUFACTURERS PART NUMBERT7401B
  • SWITCH TYPE4PDT
  • VOLTAGE125
  • WIDTH INCHES8.25
  • WATTAGE RESISTIVE40 Amp @120 - 480 VAC
  • WATTAGE TUNGSTEN40 Amp 120 - 277 VAC
