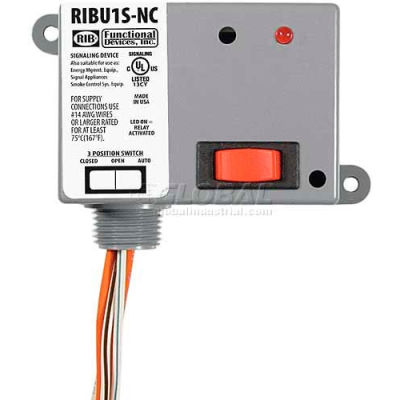

RIB® Enclosed Relay RIBU1S-NC, 10A, SPST-NC, 10-30VAC/DC/120VAC, Override
The Pilot Series contains relays that are rated at 10 or 15 Amps. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.
The Pilot Series contains relays that are rated at 10 or 15 Amps. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.
Weights & Dimensions
- Width 3.2 in
- Length 2.3 in
- Height 1.8 in
- Wire Size 16 in
Product Details
- Operating Temperature -30° To 140°F
- Humidity Range 5 To 95 Percent (Noncondensing)
- Voltage 10-30VAC/DC/120VAC V
- Expected Relay Life 10 Million Cycles Minimum Mechanical
- Description Enclosed Relay
- Number of Relays 1
- Amperage 10 A
- Includes Override
- Wire Rating 600V
- Brand RIB
- Manufacturers Part Number RIBU1S-NC
- Contact Type SPST-NC
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications UL Listed
