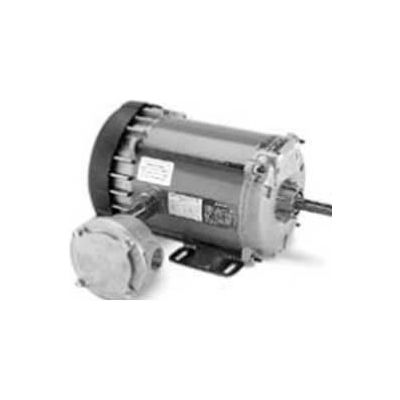

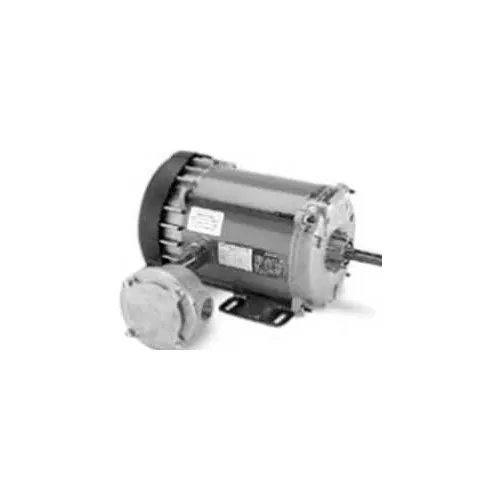

Marathon Motors Explosion Proof Motor, C646, 5KC36PNB169X, 1/4HP, 115/230V, 1800RPM, 1PH, EPNV
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Weights & Dimensions
- Opposite End Bearing Size Ball
- Weight 24.2 lbs
Product Details
- 60 Hertz kW 0.19 kW
- Mounting Location Rigid
- Bearing Drive End Ball
- Assembly Required F1 Only
- RPM 1800 rpm
- Rotation CCW °
- Hazardous Location EXP PROOF CL I GR D CL II GR F&G T3B
- Ambient Temperature 40 °C
- KVA Code L
- IP Code 54
- Insulation Class B
- RPM Range 1701-1800 rpm
- Voltage 115/230 V
- Frame 48
- Service Factor 1
- Horsepower 1/4 HP
- Enclosure Type Explosion Proof
- Is_Motor Yes
- Duty Continuous
- Enclosure EPNV
- Phase 1
- Orientation Horizontal
- Starting Type Cap Start Ind Run
- Full Load Efficiency 59.5
- Brand Marathon Motors
- Full Load Amps 4.2/2.1 FLA
- Motor RPM 60 Hertz 1800 rpm
- Thermal Protection Automatic Protector
- Hertz 60 Hz
- Manufacturers Part Number C646
Compliance & Certifications
- CE Approved N
- NEMA Design No Design Code
- UL UL Listed
Customer Review
Product Q & A
There are no questions for this product.

Marathon Motors Explosion Proof Motor, C646, 5KC36PNB169X, 1/4HP, 115/230V, 1800RPM, 1PH, EPNV
$515.0
