Marathon Motors Explosion Proof Motor, E564, 286TTGN6537, 30HP, 230/460V, 1800RPM, 3PH, EPFC

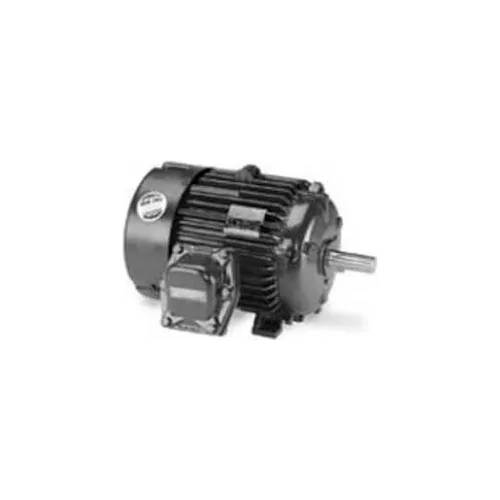

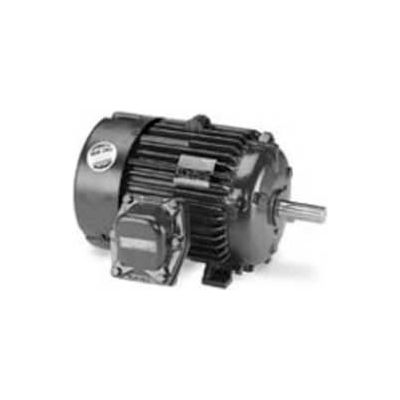

Actual product may differ from image shown

Marathon Motors Explosion Proof Motor, E564, 286TTGN6537, 30HP, 230/460V, 1800RPM, 3PH, EPFC

Item #: WBB868382

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $3,830.00

$638.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Marathon Motors Explosion Proof Motor, E564, 286TTGN6537, 30HP, 230/460V, 1800RPM, 3PH, EPFC

Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.

Weights & Dimensions

  • Opposite End Bearing Size Ball
  • Weight 588 lbs
  • Drive End Bearing Size 6311

Product Details

  • 60 Hertz kW 22.4 kW
  • Mounting Location Rigid
  • Bearing Drive End 6311
  • Assembly Required F1 Only
  • 50 Hertz Kilowatts 18.7 kW
  • RPM 1800/1500 rpm
  • Hazardous Location EXP PROOF CL I GR C&D CL II GR F&G T3B
  • 50 Hertz FLE 93.60 Percent FLE
  • Ambient Temperature 40 °C
  • KVA Code G
  • IP Code 54
  • Insulation Class F
  • 50 Hertz SF 1.15
  • RPM Range 1701-1800 rpm
  • 50 Hertz Horsepower 25 HP
  • Voltage 230/460 V
  • Frame 286T
  • Inverter Speed Range Constant 10:1
  • Service Factor 1.15
  • Horsepower 30 HP
  • Enclosure Type Explosion Proof
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure EPFC
  • Phase 3
  • Orientation Horizontal
  • 60 Hertz RPM 1800 rpm
  • Starting Type Line or Inverter
  • Full Load Efficiency 94.1
  • Brand Marathon Motors
  • Full Load Amps 73/36.5 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Thermal Protection Thermostats (Normally Closed)
  • Hertz 60/50 Hz
  • Motor RPM 50 Hertz 1500 rpm
  • Manufacturers Part Number E564
  • 50 Hertz Full Load Amps 74/37 FLA
  • 50 Hertz Voltage 190/380 V

Compliance & Certifications

  • CE Approved N
  • NEMA Design B
  • UL UL Listed
