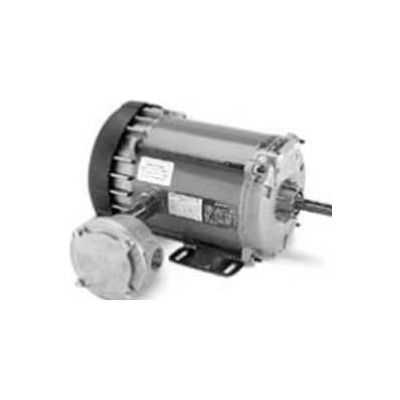

Marathon Motors Explosion Proof Motor, G661, 56T17G5313, 3/4HP, 208-230/460V, 1800RPM, 3PH, EPFC

Actual product may differ from image shown

Marathon Motors Explosion Proof Motor, G661, 56T17G5313, 3/4HP, 208-230/460V, 1800RPM, 3PH, EPFC

Item #: WBB868750

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $623.00

$103.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Explosion Proof Motor, G827, 056T17E5310, 1/4HP, 208-230/460V, 1800RPM, 3PH, EPNV

Marathon Motors Explosion Proof Motor, G827, 056T17E5310, 1/4HP, 208-230/460V, 1800RPM, 3PH, EPNV

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, C646, 5KC36PNB169X, 1/4HP, 115/230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, C646, 5KC36PNB169X, 1/4HP, 115/230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G872, 56C17G5328, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G872, 56C17G5328, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Marathon Motors Explosion Proof Motor, G661, 56T17G5313, 3/4HP, 208-230/460V, 1800RPM, 3PH, EPFC

Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.

Weights & Dimensions

  • Opposite End Bearing Size Ball
  • Weight 30 lbs
  • Drive End Bearing Size 6203

Product Details

  • 60 Hertz kW 0.56 kW
  • Mounting Location Rigid
  • Bearing Drive End 6203
  • Assembly Required F1 Only
  • RPM 1800 rpm
  • Hazardous Location EXP PROOF CL I GR C&D CL II GR F&G T3B
  • Ambient Temperature 40 °C
  • KVA Code L
  • IP Code 54
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 208-230/460 V
  • Frame 56
  • Service Factor 1
  • Horsepower 3/4 HP
  • Enclosure Type Explosion Proof
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure EPFC
  • Phase 3
  • Orientation Horizontal
  • 60 Hertz RPM 1800 rpm
  • Starting Type Across the Line
  • Brand Marathon Motors
  • Full Load Amps 2.9-3.0/1.5 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Thermal Protection Automatic Protector
  • Hertz 60 Hz
  • Manufacturers Part Number G661

Compliance & Certifications

  • CE Approved N
  • NEMA Design B
  • UL UL Listed
