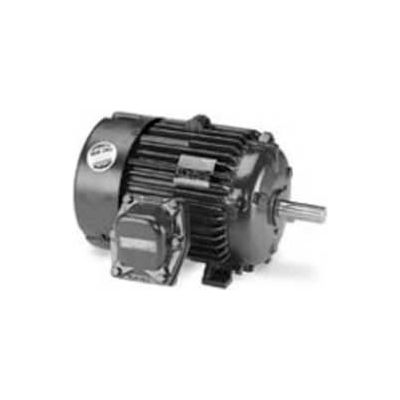

Marathon Motors Explosion Proof Motor, H503, 449TTGS7037, 300HP, 460V, 1800RPM, 3PH, EPFC

Actual product may differ from image shown

Marathon Motors Explosion Proof Motor, H503, 449TTGS7037, 300HP, 460V, 1800RPM, 3PH, EPFC

Item #: WBB870053

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $15,202.00

$2,533.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size C - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size C - Made In USA

Marathon Motors Explosion Proof Motor, E564, 286TTGN6537, 30HP, 230/460V, 1800RPM, 3PH, EPFC

Marathon Motors Explosion Proof Motor, E564, 286TTGN6537, 30HP, 230/460V, 1800RPM, 3PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Marathon Motors Explosion Proof Motor, G852, 056C17E5319, 1/4HP, 115/208-230V, 1800RPM, 1PH, EPNV

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size C - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size C - Made In USA

Marathon Motors Explosion Proof Motor, H503, 449TTGS7037, 300HP, 460V, 1800RPM, 3PH, EPFC

Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.

Product Details

  • 60 Hertz kW 224 kW
  • Mounting Location Rigid
  • Bearing Drive End NU319
  • Assembly Required F1 Only
  • 50 Hertz Kilowatts 187 kW
  • RPM 1800/1500 rpm
  • Hazardous Location EXP PROOF CL I GR C&D CL II GR F&G T3B
  • 50 Hertz FLE 95.00 Percent FLE
  • Ambient Temperature 40 °C
  • KVA Code G
  • IP Code 54
  • Insulation Class F
  • 50 Hertz SF 1.0
  • RPM Range 1701-1800 rpm
  • 50 Hertz Horsepower 250 HP
  • Voltage 460 V
  • Frame 447/9T
  • Inverter Speed Range Constant 2:1
  • Service Factor 1
  • Horsepower 300 HP
  • Enclosure Type Explosion Proof
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure EPFC
  • Orientation Horizontal
  • 60 Hertz RPM 1800 rpm
  • Starting Type PWS & YDRUN or INV
  • Full Load Efficiency 95.4
  • Brand Marathon Motors
  • Full Load Amps 338 FLA
  • Motor RPM 60 Hertz 1800 rpm
  • Thermal Protection Thermostats (Normally Closed)
  • Hertz 60/50 Hz
  • Motor RPM 50 Hertz 1500 rpm
  • Manufacturers Part Number H503
  • 50 Hertz Full Load Amps 342 FLA
  • 50 Hertz Voltage 380 V

Compliance & Certifications

  • NEMA Design B
  • UL UL Listed
  • CE Approved N

Weights & Dimensions

  • Drive End Bearing Size NU319
  • Opposite End Bearing Size Ball
  • Weight 3032 lbs
