Marathon Motors F103, 3/4HP, 115/208-230V, 1800RPM, 1PH, TEFC, 56 FR

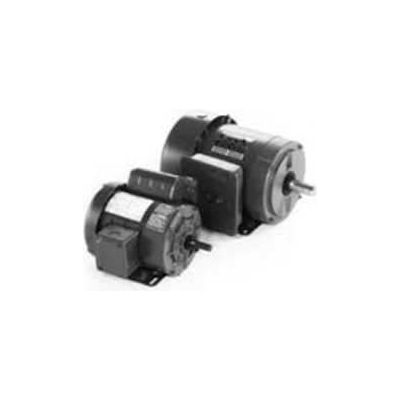

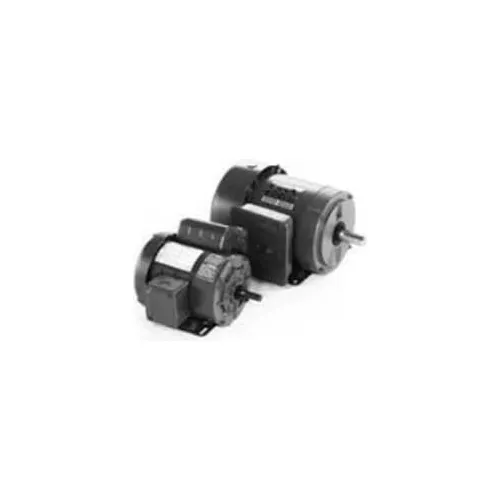

Actual product may differ from image shown

Marathon Motors F103, 3/4HP, 115/208-230V, 1800RPM, 1PH, TEFC, 56 FR

Item #: WBB868768

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $277.95

Save $13.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Marathon Motors X1903, 1/4HP, 115V, 1725RPM, 1PH, TENV, 48Z FR

Marathon Motors X1903, 1/4HP, 115V, 1725RPM, 1PH, TENV, 48Z FR

Worldwide Electric PM DC Motor WPMDC1-18-180V-56CB, TENV & TEFC, 56C, 180V, 1 HP, 1800 RPM

Worldwide Electric PM DC Motor WPMDC1-18-180V-56CB, TENV & TEFC, 56C, 180V, 1 HP, 1800 RPM

US Motors Farm Duty, 1/2 HP, 1-Phase, 1725 RPM Motor, FD12CM2P

US Motors Farm Duty, 1/2 HP, 1-Phase, 1725 RPM Motor, FD12CM2P

US Motors Farm Duty, 2 HP, 1-Phase, 1725 RPM Motor, FD2CM2PHZ

US Motors Farm Duty, 2 HP, 1-Phase, 1725 RPM Motor, FD2CM2PHZ

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors F103, 3/4HP, 115/208-230V, 1800RPM, 1PH, TEFC, 56 FR

These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.

Weights & Dimensions

  • Drive End Bearing Size 6203
  • Opposite End Bearing Size Ball
  • Weight 29

Product Details

  • Service Factor 1.15
  • Horsepower 3/4 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure TEFC
  • Phase 1
  • Orientation Horizontal
  • Starting Type Cap Start Ind Run
  • Brand Marathon Motors
  • Full Load Amps 11/5.4-5.5 FLA
  • Motor RPM 60 Hertz 1725 rpm
  • Thermal Protection Manual Protector
  • Manufacturers Part Number F103
  • Catalog Number F103
  • Kilowatts 0.56 kW
  • Mounting Location Rigid
  • Bearing Drive End 6203
  • Assembly Required F1 Only
  • RPM 1725 rpm
  • Rotation CCW °
  • Ambient Temperature 40 °C
  • KVA Code L
  • IP Code 43
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 115/230 V
  • Frame 56

Compliance & Certifications

  • NEMA Design N
  • CSA Certified Y
  • UL Recognized Construction and Protector
