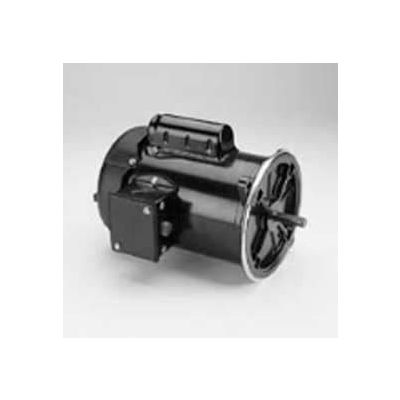

Marathon Motors F1205, 1-1/2HP, 115/230V, 1800RPM, 1PH, TEFC, 56NZ FR

Actual product may differ from image shown

Marathon Motors F1205, 1-1/2HP, 115/230V, 1800RPM, 1PH, TEFC, 56NZ FR

Item #: WBB869157

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $349.95

Save $17.50 with 5% off when you use your Global Industrial Credit Card.

Quantity

Marathon Motors F1205, 1-1/2HP, 115/230V, 1800RPM, 1PH, TEFC, 56NZ FR

These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.

  • HORSEPOWER 1 1/2
  • ENCLOSURE TEFC
  • FRAME 56NZ
  • BRAND Marathon Motors
  • MOUNTING N-Flange Footless
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 1
  • VOLTAGE 115/230
  • SERVICE FACTOR 1
  • THERMAL PROTECTION Manual Protector
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING Ball
  • WEIGHT 45
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER F1205
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • FL AMPS 15.2/7.6
  • OPPOSITE END BEARING SIZE Ball
  • DRIVE END BEARING SIZE 6203
  • ASSEMBLY F1 Only
  • ORIENTATION Horizontal
  • BEARING-DRIVE-END 6203
  • IP CODE 43
  • STARTING TYPE Cap Start Cap Run
  • NEMA DESIGN No Design Code
  • CATALOG NUMBER F1205
  • FL EFFICIENCY 80
  • KVA-CODE J
  • is_motor Yes
  • KILOWATS 1.12
  • MODEL NUMBER 56B17F15516
