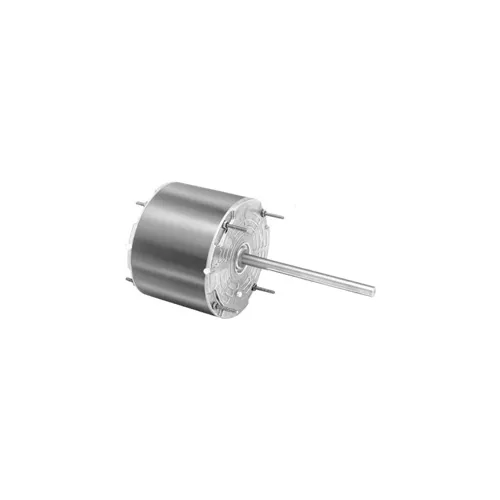

Fasco D917, 5-5/8" Motor - 208-230 Volts 1075 RPM

Fasco D917, 5-5/8" Motor - 208-230 Volts 1075 RPM

Item #: WBB186130

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $137.95

Save $6.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Fasco D7909, 5-5/8" Motor - 208-230 Volts 1075 RPM

Fasco D7909, 5-5/8" Motor - 208-230 Volts 1075 RPM

US Motors 2246, Condenser Fan, 1/5 HP, 1-Phase, 1075 RPM Motor

US Motors 2246, Condenser Fan, 1/5 HP, 1-Phase, 1075 RPM Motor

US Motors 1859, Condenser Fan, 1/6 HP, 1-Phase, 1075 RPM Motor

US Motors 1859, Condenser Fan, 1/6 HP, 1-Phase, 1075 RPM Motor

Century ORM5458, 5 5/8" Condenser Fan Motor - 208-230 Volts 1075 RPM

Century ORM5458, 5 5/8" Condenser Fan Motor - 208-230 Volts 1075 RPM

US Motors 1874, Condenser Fan, 1/4 HP, 1-Phase, 825 RPM Motor

US Motors 1874, Condenser Fan, 1/4 HP, 1-Phase, 825 RPM Motor

Fasco D748, 5-5/8" Motor - 208-230 Volts 1075 RPM

Fasco D748, 5-5/8" Motor - 208-230 Volts 1075 RPM

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Fasco 5-5/8" Permanent Split Capacitor Motor - 208-230 Volts 1075 RPM

  • 60 HZ
  • Automatic Overload
  • Single Phase
  • Permanent Split Capacitor
  • Reversible Rotation


Weights & Dimensions

  • Length Less Shaft 5-1/4 in

Product Details

  • RPM Range 1001-1100 rpm
  • Number of Speeds 1
  • Voltage 208-230 V
  • Rated RPM 1075
  • Frame 48
  • Capacitor Required MFD/V none
  • Horsepower 1/6 HP
  • Is_Motor Yes
  • Phase 1
  • Motor Type Permanent Split Capacitor
  • Compatible Part/Model Number Trane MOT-11727
  • Rotation CCW/CW °
  • Brand Fasco
  • Bearing Type Ball
  • Full Load Amps 2.3 FLA
  • Motor RPM 60 Hertz 1075 rpm
  • Thermal Protection Automatic
  • Hertz 60 Hz
  • Manufacturers Part Number D917

Compliance & Certifications

  • Certifications UL and CSA
Customer Review

4.0

  • 5 Star

    0
  • 4 Star

    1
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Anonymous

    Date: July 29, 2013

    Good motor - fair adjustment
    Your review:
    Okay, the motor was okay, the schematic was helpful. The shaft was long and had to be cut (why they don't do a 3" shaft I don't know). The problem was with the bolts running through the case. These are also the mounting bolts and were too long and not threaded all the way. These also hold the casing together so be careful. I could not shorten up the bolts far enough on the back side to mount it. Also they should list the appropriate capacitor as a recommended buy.
Product Q & A

There are no questions for this product.

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
