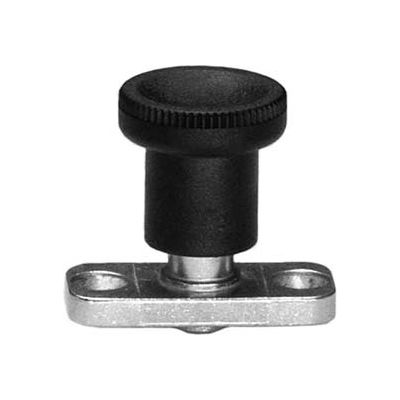

Plate Mount Indexing Plunger - Lock-Out Type Steel .24"x.24" Pin
This indexing Plunger is used in applications which require surface mounting and the plunger has to stay in its retracted position. To achieve this, the knob is rotated 90° after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. The series has been expanded with additional plunger pin lengths to widen the application opportunities. Maximum heat resistance of nylon plastic hand knob is 230°F.
This indexing Plunger is used in applications which require surface mounting and the plunger has to stay in its retracted position. To achieve this, the knob is rotated 90° after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. The series has been expanded with additional plunger pin lengths to widen the application opportunities. Maximum heat resistance of nylon plastic hand knob is 230°F.
Product Specifications
- DESCRIPTIONPlate Mount Indexing Plunger
- PLATE THICKNESS INCHES0.18
- PLATE WIDTH INCHES0.71
- MANUFACTURERS PART NUMBER6W6L90
- PLATE LENGTH INCHES1.57
- BRANDJ.W. Winco
- OVERALL LENGTH INCHES1.46
- FINAL-END PRESSURE4.95 lbs
- START-END PRESSURE1.91 lbs
- CONSTRUCTIONZinc Plated Steel
- KNOB DIAMETER INCHES0.98
- COUNTRY OF ORIGINImport
- TYPELock-Out
- MOUNTING HOLE DIAMETER INCHES0.17
- PIN LENGTH INCHES0.24
- PIN DIAMETER INCHES0.24
- C TO C MOUNTING INCHES1.18
