Features:
- Leveling mount made of carbon steel with yellow zinc plated finish
- Hardened stud with ball end is machined from solid bar
- Non-skid cup pad
- Neoprene rubber

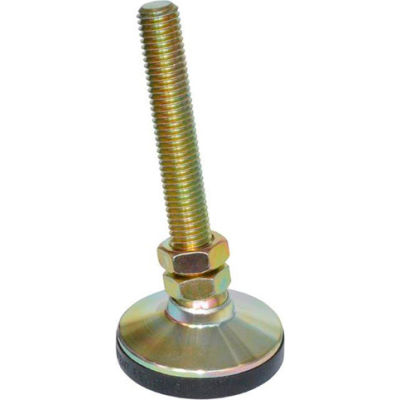

J.W. Winco 10N2SNS SNSM-1.25-M10-2-ST "Snap-Lock" Non-Skid Leveling Mounts Steel, Threaded Stud
Write a Review
|
Questions & Answers (0)
Product Description
Unlike the standard glue-on non-skid elastomer pad, this unique snap-on elastomer cup gives greater stability to non-skid application requirements. Especially durable when equipment needs to be moved or repositioned. Mount swivels 7 1/2° to all sides of the center line to adjust to uneven surfaces.
Features:
Features:
PRICE
$14.75
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Base Height (L2) | 22.4mm |
| Hex Flats (A/F) | 0.63mm |
| Base Diameter (D1) | 31.8mm |
| Pad Height (l3) | 5.6mm |
| Max Load | 2800 lbf lbs |
| Thread Length (l1) | 50.8mm |
Product Details
| Thread (D2) | M10 |
| Material | Carbon Steel, Neoprene Rubber |
| Brand | J.W. Winco |
