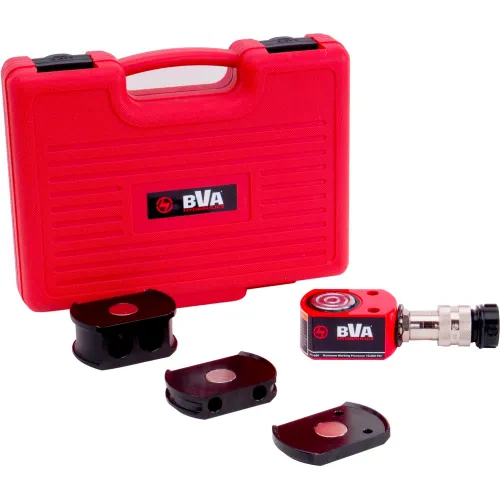

BVA Hydraulics Flat Body Hydraulic Cylinder Kit HF1005B, 10 Ton
The kit comes with various magnetic shims eliminate dangerous cribbing. Mounting holes permit easy fixturing, and the CH38F coupler and dustcap is included on all models. These are hard chrome plated high quality steel plungers. Other Features include grooved plunger ends which require no saddle, and a single acting spring return. It also comes with a convenient carrying case. The maximum working pressure is 10,000 psi, (700 bar). WARNING: NEVER use hydraulic cylinder as a support device. Flat Body Cylinder Kits (HF Series)
Features:
The kit comes with various magnetic shims eliminate dangerous cribbing. Mounting holes permit easy fixturing, and the CH38F coupler and dustcap is included on all models. These are hard chrome plated high quality steel plungers. Other Features include grooved plunger ends which require no saddle, and a single acting spring return. It also comes with a convenient carrying case. The maximum working pressure is 10,000 psi, (700 bar). WARNING: NEVER use hydraulic cylinder as a support device. Flat Body Cylinder Kits (HF Series)
Features:
- Made of high quality steel
- Various height magnetic adapters
- Carrying case
- Perfect for low clearance areas needing a little height boost
- Maximum working pressure: 10,000 psi/700 bar
- BVA's HF1005B, 10 ton, 0.42999999999999999 stroke
- BVA's HF1005B , 10 ton, 0.42999999999999999 stroke compact, flat design for use where other cylinders will not fit
Weights & Dimensions
- Collapsed Height 1.69
- Cylinder Bore Diameter 1.73
- Extended Height 2.12
- Width 36 in
- Diameter 3.3x2.2
- Length 20 in
- Height 7/8 in
- Weight 3.3 lbs
- Stroke 0.43 in
Product Details
- Description Hydraulic Cylinder Kit
- Internal Pressure at Capacity 8470 psi
- Brand BVA Hydraulics
- Cylinder Capacity (Tons) 10 tons
- Manufacturers Part Number HF1005B
- Cylinder Effective Area (In²) 2.36 in²
- Oil Capacity (In³) 1.01 in
Customer Review
Product Q & A
There are no questions for this product.

BVA Hydraulics Flat Body Hydraulic Cylinder Kit HF1005B, 10 Ton
$533.0
