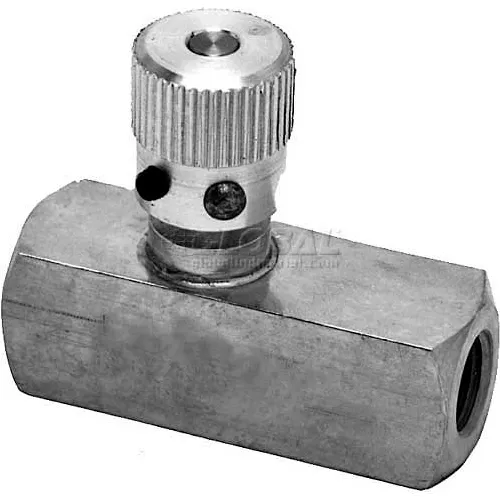

Buyers Flow Control Valve, F400sae, Steel Flow Control Valve, #4 Sae - Min Qty 2

Number of Spools 1,2,3 Rated Working Pressure 2500 PSI (172 bar) Max. Shock and Surge Pressure 4000 PSI (276 bar) Rated Flow Capacity 30 GPM (114 l/m) Max. Spool Leakage (1000 PSI) 16 cc/min Mounting, Any Position 3 Mounting Holes for 3?8" Bolts Weight 1 Spool: 13 lbs.; 2 Spool: 21 lbs.; 3 Spool: 33 lbs. Standard Features Integral load holding check valves (prevents reverse flow through valve when shifting) Integral differential poppet type relief valve, adjustable (set @ 2000 PSI, 10 GPM) Balanced, select-fit spools (provide minimum leakage, smooth operation) External spool seals (permit ...

Aignep USA's Fluidity Line of fluid power valves provide a concise and versatile offering of brass and stainless steel valves to manage flow and processing operations in industry. With seals available in NBR, EPDM and FKM, Fluidity caters to a wide variety of chemical mediums. Several orifice sizes are offered to provide optimum flow management for a given application. DIN style form A and B connectors turn electricity to control action in all common voltages from 12V to 220V. Offered in Normally open (NO) and Normally Closed.

Aignep USA's Fluidity Line of fluid power valves provide a concise and versatile offering of brass and stainless steel valves to manage flow and processing operations in industry. With seals available in NBR, EPDM and FKM, Fluidity caters to a wide variety of chemical mediums. Several orifice sizes are offered to provide optimum flow management for a given application. DIN style form A and B connectors turn electricity to control action in all common voltages from 12V to 220V. Offered in Normally open (NO) and Normally Closed.

Have a screwed bonnet, non-rising stem, solid wedge disc, and integral seats Recommended for non-steam use in residential and light commercial applications May be repacked while in service under pressure 200 PSI W.O.G. Non-shock

1/4" Thru 1-1/4" NPTF Rugged carbon steel or forged construction Blow out proof stems Buna seals standard
