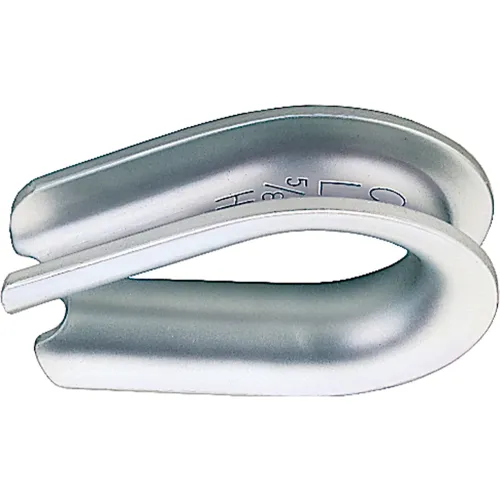

Crosby G-414 Galvanized Thimble Extra Heavy 5/8" Wire

Entire clip is Galvanized to resist corrosive and rusting action. Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 3/16"-7/8" sizes, and 90% for sizes 1" through 1-1/2". Bolts are an integral part of the saddle. Nuts can be installed in such a way as to enable the operator to swing the wrench in a full arc for fast installation. All sizes have forged steel saddles. All Clips are individually bagged or tagged with proper application instructions and warning information. Meets or exceeds all requirements of ASME B30.26 ...

Eliminates the potential breaking off of the tail due to fatigue…tail is secured by base of clip and the wedge, left unharmed and available for reuse Eliminates the need for an extra piece of wire rope Dead end of wire rope is secured to wedge, which eliminates loss or "punch out" of the wedge Basket is cast steel and magnetic particle inspected Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets 80% efficiency rating based on catalog strength of XXIP wire rope QUIC-CHECK markings are incorporated…the wire rope should pass ...

Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or CG, and a size forged into it. Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 1/8" - 7/8" sizes, and 90% for sizes 1" through 3-1/2". Entire Clip-Galvanized to resist corrosive and rusting action. Sizes 1/8" through 2-1/2" and 3" have forged bases. All Clips are individually bagged or tagged with proper application instructions and warning information. Clip sizes up through 1-1/2" have rolled threads. Meets or exceeds all ...

Used for flemish eye wire rope splicing Designed for low temperature toughness Resists cracking when swaged (equals or exceeds stainless steel sleeves) Special processed low carbon steel Can be stamped after swaging for identification purposes (view product specifications for full details) Recommended for use with 6x19 or 6x37, IPS, XIP or XXIP, RRL, FC or IWRC wire rope

A standard thimble designed for use in light-duty applications, provides basic sling / wire rope protection Hot-dip galvanized Meets Federal Specification FF-T-276b Type II
