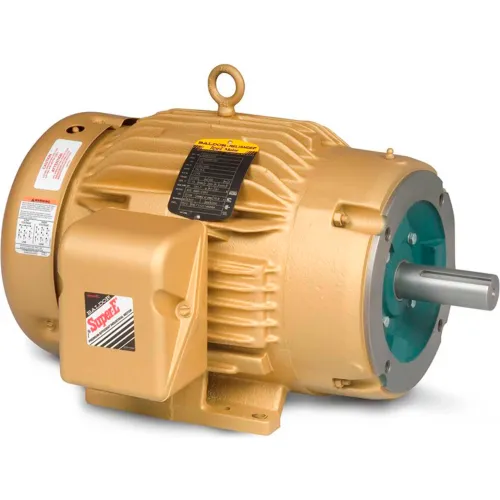

Baldor-Reliance General Purpose Motor, 208-230/460 V, 3 HP, 1165 RPM, 3 PH, 213TC, TEFC

Actual product may differ from image shown

Baldor-Reliance General Purpose Motor, 208-230/460 V, 3 HP, 1165 RPM, 3 PH, 213TC, TEFC

Item #: WBB909457

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,737.00 up to 26% OFF

Price: $1,277.00

$212.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance General Purpose Motor, 208-230/460 V, 3 HP, 1165 RPM, 3 PH, 213TC, TEFC

Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Features
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Application(s)
  • Pumps, fans, conveyors, machine tools, gear reducers.

  • HORSEPOWER 3
  • ENCLOSURE TEFC
  • FRAME 213TC
  • MOUNTING C-Face Rigid
  • NAMEPLATE RPM 1165
  • PHASE 3
  • MOTOR RPM 60Hz 1165
  • VOLTAGE 208-230/460
  • HERTZ 60
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • RPM RANGE 1101-1200
  • SPEC. NUMBER 07H058X970G1
  • TYPE General Purpose Motor
  • C-DIMENSION INCHES 19.2
  • POWER-FACTOR 71
  • BALDOR CATALOG NUMBER CEM3764T
  • ENCLOSURE TYPE Totally Enclosed
  • is_motor Yes
  • MANUFACTURER PART # CEM3764T
  • BRAND Baldor-Reliance
  • 208V AMPS --
  • KVA-CODE K
  • FL AMPS 9.4-9/4.5
  • INSULATION CLASS F
  • FL EFFICIENCY 89.5
  • BEARING-OPP-DRIVE-END 6206
  • BEARING-DRIVE-END 6307
  • DESIGN CODE B
