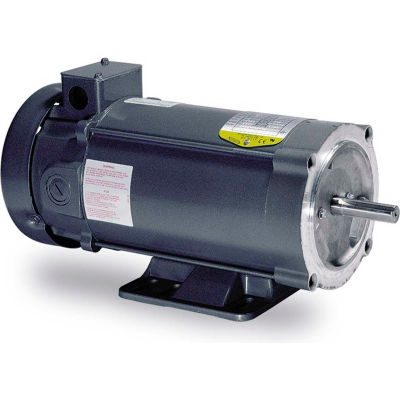

Actual product may differ from image shown
$1,689.00 up to 38% OFF
Price: $1,051.00
$175.17/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Baldor-Reliance General Purpose Motor, CDP3440, 0.75 HP, 1750 RPM, TEFC, 56C Frame
These NEMA frame DC motors include permanent magnet designs through 5 HP and wound field designs through 500 HP designed for adjustable speed operation from SCR controls. Applications include conveyors, extruders, winders, printing presses and metering pumps. Most designs are constructed so a tachometer may be added for closed loop applications. Permanent magnet and wound field designs for 90 or 180 VDC have a 20:1 constant torque speed range.
Features
These NEMA frame DC motors include permanent magnet designs through 5 HP and wound field designs through 500 HP designed for adjustable speed operation from SCR controls. Applications include conveyors, extruders, winders, printing presses and metering pumps. Most designs are constructed so a tachometer may be added for closed loop applications. Permanent magnet and wound field designs for 90 or 180 VDC have a 20:1 constant torque speed range.
Features
- NEMA C-face with removable base
- Tach adaptable
- Class F insulation
- Double sealed ball bearings
- UL and CSA recognized
- 3300P motors are TENV,all others are TEFC
- No dual mounting base holes on 33P type
- Conveyors, mixers,packaging machinery and other applications requiring variable speed and constant torque.
Weights & Dimensions
- Opposite End Bearing Size 6203
- Base RG
- Drive End Bearing Size 6203
Product Details
- Insulation Class F
- RPM Range 1701-1800 rpm
- Mounting Location Rigid
- Frame 56C
- Horsepower 3/4 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Enclosure TEFC
- Armature Voltage 90 V
- Field Voltage 90 V
- Brand Baldor-Reliance
- Motor RPM 60 Hertz 1750 rpm
- Armature Full Load Amps 7.6 FLA
- Catalog Number CDP3440
- Nameplate RPM 1750 rpm
- Ambient Temperature 40 °C
Compliance & Certifications
- Specification Number 34-5990-3662
