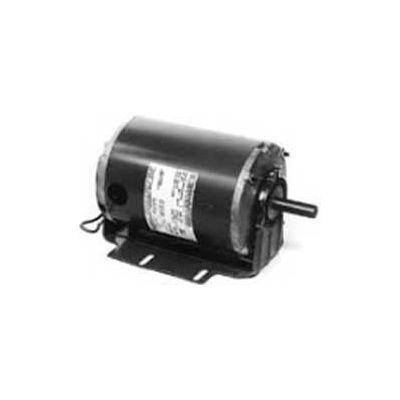

Marathon Motors H197, 1/6HP, 115V, 1140RPM, 1PH, TENV, 48 FR

Actual product may differ from image shown

Marathon Motors H197, 1/6HP, 115V, 1140RPM, 1PH, TENV, 48 FR

Item #: WBB869006

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $259.95

Save $13.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Marathon Motors Z128, 2HP, 115/230V, 1800RPM, 1PH, TEFC, 145T FR

Marathon Motors X1903, 1/4HP, 115V, 1725RPM, 1PH, TENV, 48Z FR

Marathon Motors X1903, 1/4HP, 115V, 1725RPM, 1PH, TENV, 48Z FR

US Motors Farm Duty, 1/2 HP, 1-Phase, 1725 RPM Motor, FD12CM2P

US Motors Farm Duty, 1/2 HP, 1-Phase, 1725 RPM Motor, FD12CM2P

US Motors Farm Duty, 2 HP, 1-Phase, 1725 RPM Motor, FD2CM2PHZ

US Motors Farm Duty, 2 HP, 1-Phase, 1725 RPM Motor, FD2CM2PHZ

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors H197, 1/6HP, 115V, 1140RPM, 1PH, TENV, 48 FR

These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.

Weights & Dimensions

  • Drive End Bearing Size 6203
  • Opposite End Bearing Size Ball
  • Weight 17

Product Details

  • Mounting Location Resilient Base/Stud
  • Bearing Drive End 6203
  • RPM 1140 rpm
  • Rotation CCW °
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class B
  • RPM Range 1101-1200 rpm
  • Voltage 115 V
  • Frame 48
  • Service Factor 1
  • Horsepower 1/6 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Enclosure TENV
  • Phase 1
  • Orientation Horizontal or Vertical
  • Starting Type Switch and Mech
  • Full Load Efficiency 0
  • Brand Marathon Motors
  • Full Load Amps 3.7 FLA
  • Motor RPM 60 Hertz 1140 rpm
  • Manufacturers Part Number H197
  • Catalog Number H197

Compliance & Certifications

  • CSA Certified Y
  • UL Y
