Features: <ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>Grade 1 Cylindrical</li><li>Extra heavy duty commercial, industrial, institutional</li><li> Lifetime warranty</li><li>No exposed mounting screws</li><li>Non-handed</li><li>Conventional cylinder or Small Format Interchangeable Core housing available</li><li>Standard Door Prep: 2-1/8" (54 mm) diameter (cross bore), Latch hole: 1" (25.4 mm) diameter (edge bore)</li><li>Certifications: BHMA Certified ANSI A156.2 Series 4000 Grade 1, ADA Compliant ANSI A117.1 Accessibility Code (levers only), ANSI A250.13 Severe Windstorm Resistant Component</li><li>UL/cUL Listed for all functions up to 3 hours for "A" label doors</li><li>UL10C/UBC 7-2 (1997) Positive Pressure Rated</li><li>UL10B Neutral Pressure Rated</li><li> Exposed Trim: Knobs: Wrought brass or stainless steel</li><li> Levers: Cast zinc Rose: Wrought brass or stainless steel</li><li>Rose Diameter: 3-17/32" (90 mm) levers; 3" (76 mm) knobs </li><li>Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance, Free wheeling (levers only), Thru-bolt mounting (levers only)</li><li>Keys: Two operating keys supplied per lock</li><li>Cylinders/Cores:Brass 6-pin, keyed different - C Keyway, Drilled 6-pin, Keyed 5-pin - Standard, Other keying options, including keyed 6-pin, available from factory</li><li>Small Format Interchangeable Core housing available: SFIC uncombinated or combinated, brass 6- or 7-pin sold separately </li><li>Door Thickness: Knobs: 1-3/8" (35 mm) - 1-3/4" (45 mm), Levers: 1-3/8" (35 mm) - 2" (51 mm) </li><li>Backset: 2-3/4" (70 mm) - Standard, 2-3/8" (60 mm) - Optional, 3-3/4" (94 mm) - Optional, 5" (128 mm) - Optional</li><li>Latchbolt: 1/2" (13 mm) throw, stainless steel, 1-1/8" (29 mm) x 2-1/4" (57 mm) faceplate, Square corner faceplates standard, round corner available, Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only, 3/4" (18 mm) latch available </li><li> Strike: 3935 ASA 1-1/4" (32 mm) x 4-7/8" (124 mm) strike - Standard</li><li>Functions: 10 Passage, 17 Dummy, 40 Privacy, 50 Office, 53 Entry, 70 Classroom, 73 Corridor (levers only), 80 Storeroom, 95 Intruder Classroom (levers only)</li><li>Finishes: US3, US4, US10, US10B, US26, US26D (levers only), US3, US32D (knobs only)</li><li>Lever Options: Apollo knob; Archer, August, Withnell levers</li><li>Options: Lead lined (levers only), Tactile Warning (levers only), Split finish, Additional latchbolts and strikes available, Intruder Classroom indicator available, specify IND (inside rose will have three indicator points for a guide reference for locking the door)</li></ul>

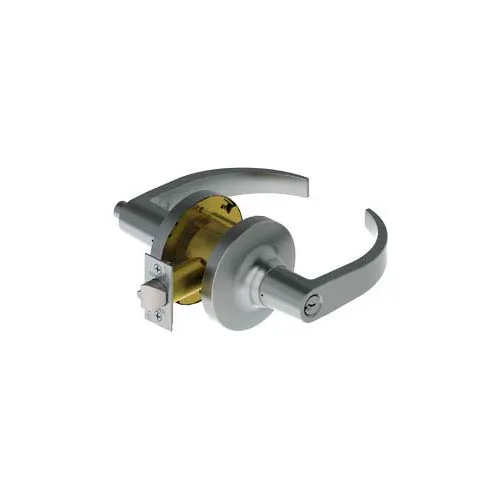

Hager 3400 Series Grade 1 Cylindrical Lock - Entry 345302N26D000WCDA

hager-3400-series-grade-1-cylindrical-lock-entry2
