<b>Features:</b><br><br><ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>Standard duty commercial: Lifetime warranty,  No exposed mounting screws, Non-handed, Conventional cylinder or Small Format Interchangeable Core housing </li><li>Standard Door Prep: 2-1/8" (54 mm) Diameter (Cross Bore), Latch Hole: 1" (25.4 mm) Diameter (Edge Bore)</li><li>Certifications: BHMA Certified ANSI A156.2 Series 4000 Grade 2, ADA Compliant ANSI A117.1 Accessibility Code (Levers Only),  ANSI A250.13 Severe Windstorm Resistant Component, UL/cUL Listed for all functions up to 3 hours "A" label single doors, UL10B Neutral Pressure Rated</li><li>Exposed Trim:  Knobs: Wrought Brass or Stainless Steel, Levers: Cast zinc, Rose: Wrought brass or stainless steel</li><li>Rose Diameter: 3-11/32" (85 mm) levers; 3" (76 mm) knobs</li><li>Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance, Free wheeling (levers only), Removable thru-bolts</li><li>Notes: Failure to install thru-bolts and removable screw posts voids BHMA certification, UL Rating and Warranty</li><li>Small Format Interchangeable Core housing available: SFIC uncombinated or combinated, brass 6- or 7-pin sold separately</li><li>Door Thickness: Knobs: 1-3/8" (35 mm) - 1-3/4" (45 mm), Levers: 1-3/8" (35 mm) - 2" (51 mm)</li><li>Backset: 2-3/4" (70 mm) - Standard, 2-3/8" (60 mm) - Optional, 3-3/4" (94 mm) - Optional, 5" (128 mm) - Optional</li><li>Latchbolt: 1/2" (13 mm) Throw - Stainless Steel, 1-1/8" (29 mm) x</li><li>Square corner faceplate standard, round corner available</li><li>Strike: 3935 ASA 1-1/4" (32 mm) x 4-7/8" (124 mm) strike - Standard</li><li>Functions: 10 Passage, 17 Dummy, 25 Exit Only, 27 BTB Dummy (Levers only), 40 Privacy, 50 Office, 53 Entry, 70 Classroom, 73 Corridor (Levers Only), 80 Storeroom</li><li>Finishes: US3, US4, US10, US10B, US26, US26D (Levers Only)-US3, US32D (Knobs Only)</li><li>Lever Options:Apollo knob; Archer, August, Withnell levers</li><li>Options:  Lead Lined (Levers Only), Tactile Warning (Levers Only), Split Finish, Additional latchbolts and strikes available</li><li> Notes: Blank plate projection is 13/16" (21 mm) for Functions 25 and 79</li></ul><br><br>

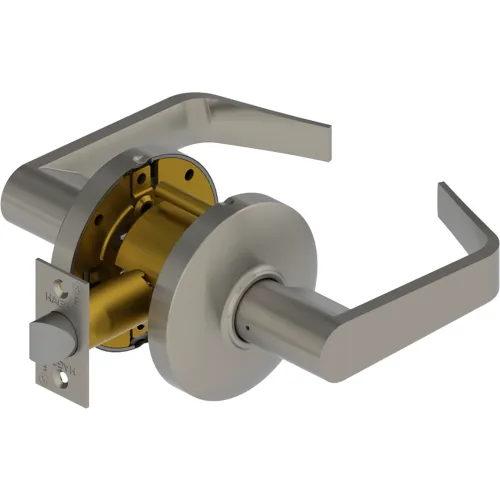

Hager 3500 Series Grade 2 Cylindrical Lock - Passage

hager-3500-series-grade-2-cylidnrical-lock-passage
