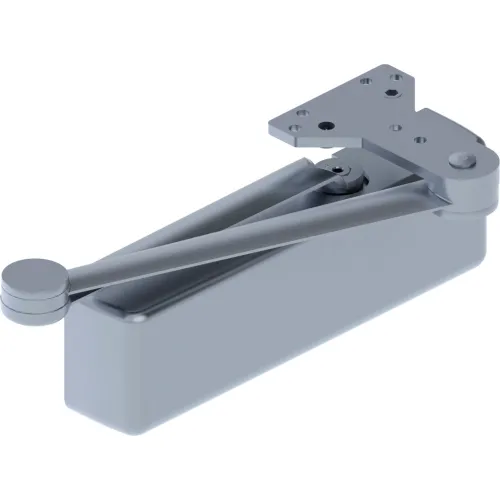

Hager 5100 Series Heavy Duty Door Closer 5100 PAR 1-6 ALM HDS

Hager 5100 Series Heavy Duty Door Closer 5100 PAR 1-6 ALM HDS

Item #: WBB486610

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$290.55 up to 18% OFF

Price: $236.95

Save $11.85 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

HHager 5100 Series Heavy Duty Door Closer 5100 PAR 1-6 ALM HDS

Features:

  • Grade 1
  • Heavy Duty Surface Door Closer
  • Ideal for schools, hospitals, and other high-use environments
  • Lifetime warranty
  • Standard package contains 5101 closer body, 5102 closer cover, 5103 main arm assembly, 5104 standard screw pack, 5909 parallel arm bracket, and 5940 SNB screw pack for 1-3/4" doors
  • Certifications: BHMA Certified ANSI A156.4, adjustable sizes 2 to 6 - Standard
  • ADA Compliant ANSI A117.1 Accessibility Code only for adjustable sizes 1 to 4 - Optional, UL/cUL Listed for up to 3 hours, UL10C Positive Pressure Rated, UL10B Neutral Pressure Rated
  • Material: Cast Iron
  • Cover: Full plastic cover - Standard, Plated metal cover - Optional
  • Springs: One piece seamless steel spring tube, Double heat treated steel, tempered springs
  • Valves: Adjustable latching and sweep speed valves, Adjustable backcheck valve - Standard, Delayed action valve - Optional,Staked valves - Standard
  • Handing:Non-handed
  • Arms & Brackets: Tri-Pack: Regular, Parallel Arm, Top Jamb Mount - Standard
  • Door Thickness: 1-3/4" (44 mm) - Standard, 1-3/8" - 2-1/4" thick door (36 mm - 57 mm) - Optional
  • Fasteners: ALM, BRZ, DBZ, GOL, US3, US26, US26D,Rust inhibiting primer - Standard
  • Notes: Full rack and pinion operation, Precision machined, heat treated steel piston, Triple heat treated steel spindle


  • WARRANTY SOME CERTIFICATIONS LIFETIME
  • MANUFACTURERS PART NUMBER 5100P16ALMS
  • DESCRIPTION 5100 Series Door Closer
  • FIRE RATING/APPROVAL UL 10C
  • CONSTRUCTION Cast Iron
  • CERTIFICATION/APPROVAL ANSI/BHMA A156.4
  • MOUNTING DIMENSIONS 5" x 2-1/4"
  • GRADE 1
  • WEIGHT LBS 15 lbs
  • FINISH Aluminum
  • FITS DOOR THICKNESS INCHES 1-3/4" STD, 1-3/8" - 2-1/4" Optional
  • FASTENERS --
